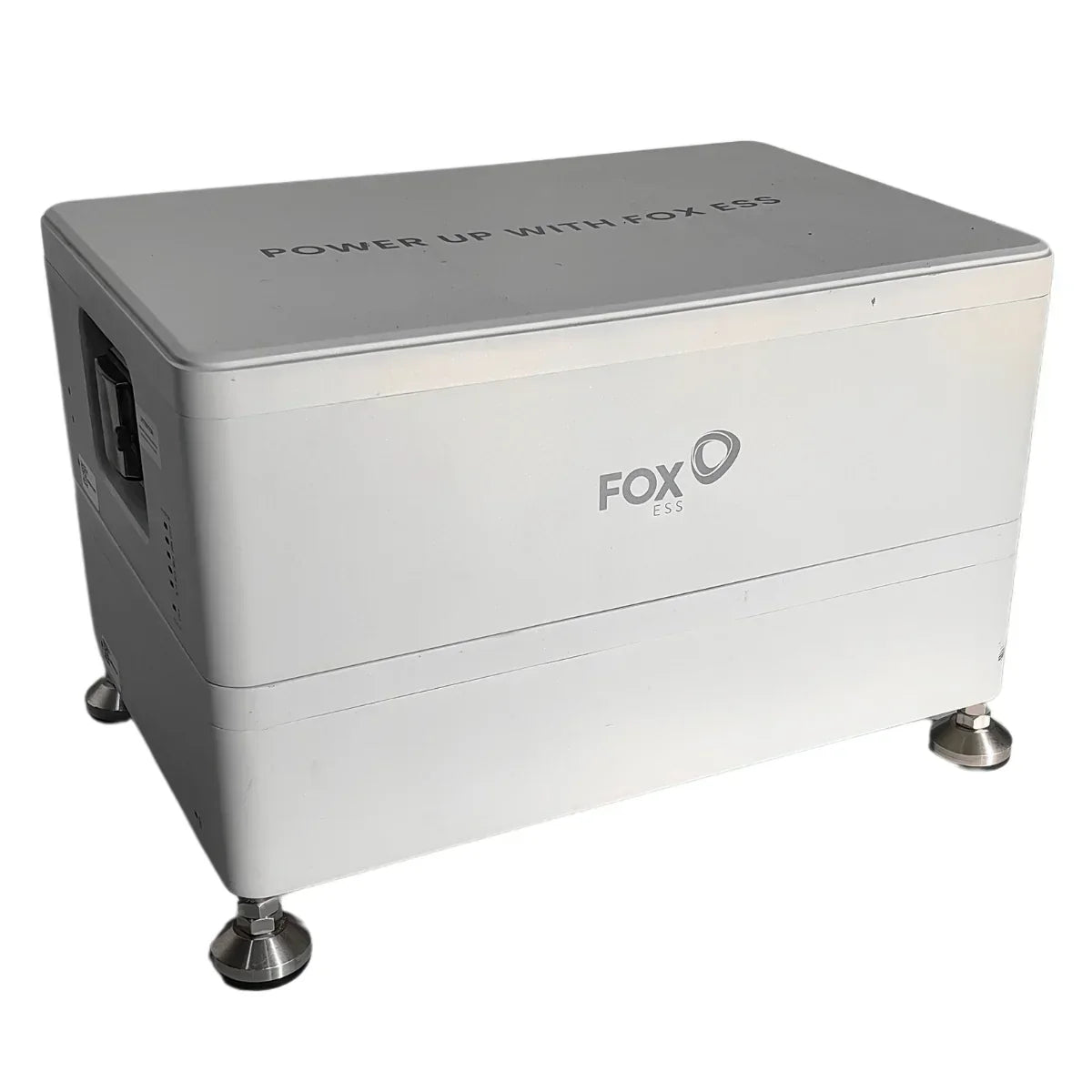

The ECS is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 19.35 kWh. Installation is easy, with a plug and play
solution that can save valuable time for installers
- 4.74kWh capacity
- Scalable to 33.24 kWh
- 90% Depth of Discharge
- Large temperature tolerance
- Easy installation
- CAN communication
- High voltage
| Specification |
ECS4800-H2 |
ECS4800-H3 |
ECS4800-H4 |
ECS4800-H5 |
ECS4800-H6 |
ECS4800-H7 |
| Battery Type |
LiFePO4 Prismatic Cell |
| Battery Module |
1*CM4800 |
2*CS4800 |
3*CS4800 |
4*CS4800 |
5*CS4800 |
6*CS4800 |
| Nominal Capacity [Wh] |
9320/9490(3C) |
13980/14240(3C) |
18640/18990(3C) |
23300/23740(3C) |
27960/28490(3C) |
32610/33140(3C) |
| Nominal Voltage [V] |
89.6 |
134.4 |
179.2 |
224 |
268.8 |
313.6 |
| Operating Voltage [V] |
81.2 - 103.8 |
121.5 - 154.5 |
162.4 - 206 |
203 - 257.6 |
244.6 - 309.1 |
284.2 - 360.6 |
| Recommend Discharge Current [A] |
25 |
| Max. Charge/Discharge Current [A] |
50 |
| Peak Discharge Current [A] |
65 @30sec |
| Battery Pack Round-Trip Efficiency [%] |
>95 |
| Depth of Discharge [%] |
90 |
| Cycle Life |
≥6000 |
| Communication |
CAN |
| Display |
CS: LED*1, CM: LED*6 |
| Scalability |
Max. 7 Modules in Series |
| Operating Conditions |
| Installation Location |
Outdoor/Indoor (Stand) |
| Operating Temperature [°C] |
Charge: 0 - 55, Discharge: -10 - 55 |
| Storage Temperature [°C] |
-10 - 35 |
| Cooling Method |
Natural Convection |
| Humidity [%] |
5 - 95 (No Condensing) |
| Altitude [m] |
Max. 2,000 |
| Mechanical Characteristics |
| Dimensions (W*H*D) [mm] |
570*380*386 |
570*380*524 |
570*380*662 |
570*380*800 |
570*380*938 |
570*380*1076 |
| Weight [kg] |
82±1 |
121±15 |
160±2 |
199±2.5 |
238±3 |
277±3.5 |
| Certificates |
| Safety |
IEC 62619 |
| EMC |
EN IEC 61000-6-1/2/3/4 |
| Transportation |
UN38.3 |
| Ingress Protection |
IP65 |
