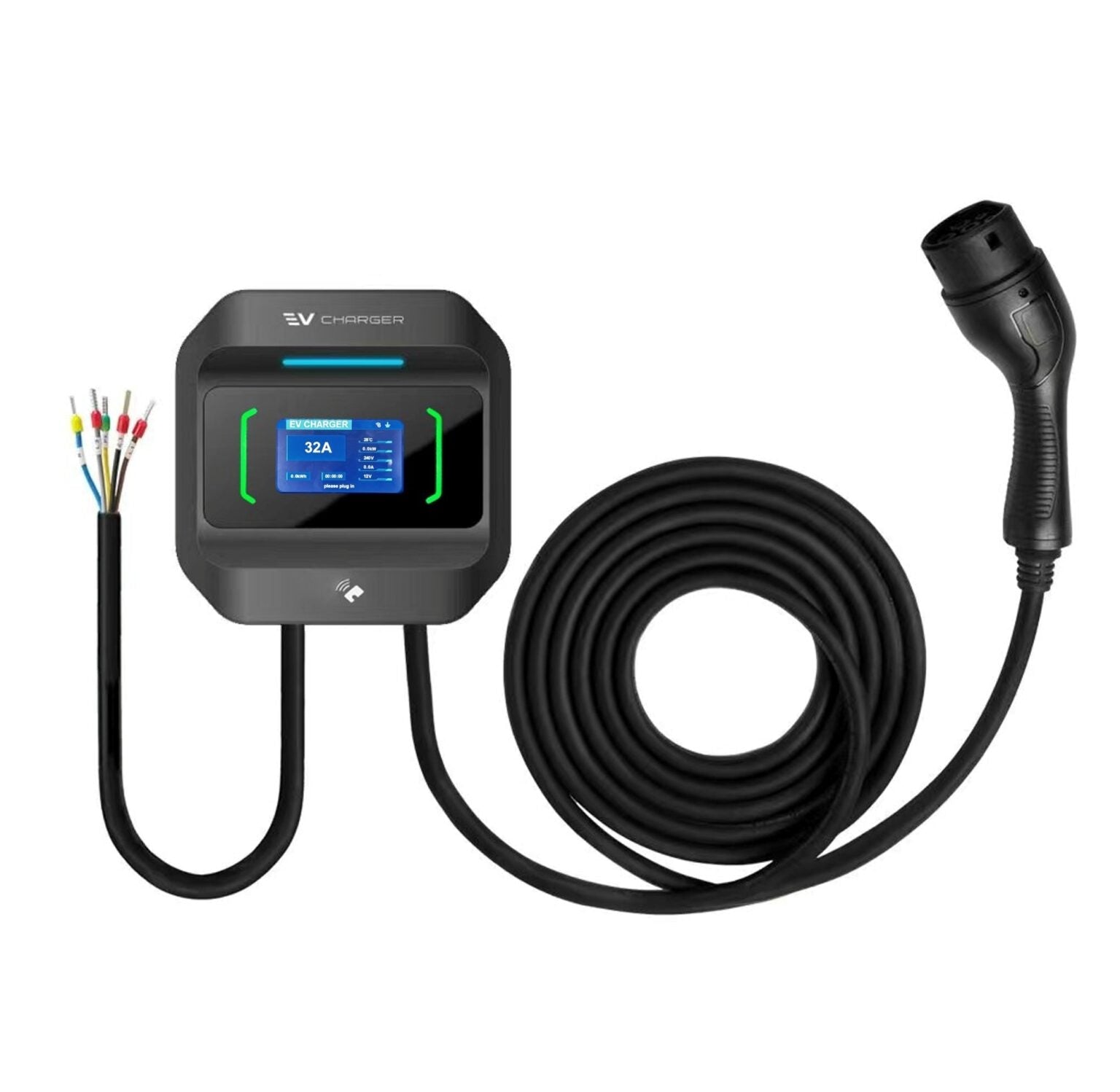

Built with durable materials and compliant with IEC standards it delivers fast, reliable three-phase AC charging up to 22kW. Tuya Smart app control for remote monitoring, scheduling, and energy management. Charge current can be set on the app or manually on the unit.
| Function |
Level 2 AC EV Charging Station |
| Modes |
Plug and charge, App start, RFID start or schedule |
| Rating |
32 A / 22 kW 3-Phase |
| Voltage |
380 – 480 VAC 50/60 Hz |
| Current adjustment |
6 to 32 A |
| Connectivity |
Wi-Fi 2.4 GHz, BT |
| App |
Tuya / Smart Life App |
| Cable |
5 m TPU jacket |
| Charge plug |
IEC 62196-2 Type 2 |
| Display |
4.3″ LCD + RGB Indicators |
| Enclosure |
IP65 weatherproof |
| Standards |
IEC 61851 with TUV CE, UKCA, RoHS certification |
| RCD protection |
Type B |
| Safety |
Leakage current protection, over current protection, ground protection, surge protection, O/U voltage protection, O/U frequency protection, temp protection |
| Controller dimensions |
250 x 250 x 90 mm |
| Material |
Polycarbonate |
| Mass |
< 6 kg |
| Box dimensions |
350 x 400 x 220 mm |
| Operating temp. |
-30° to +55° C |
| Model |
VCS-741-22S |
| Included |
Manual, 2 RFID cards, wall bracket, screws, plug and cable holder |
