Features
Advanced Battery Management System (BMS) with current limiting function.
Excellent high-temperature performance.
High cycle life and service life.
1C high-performance lithium battery.
High energy density and conversion efficiency.
Integrated battery management system for enhanced performance.
Compatible with most inverters and chargers.
Low self-discharge rate.
Mounting options: Easy wall mount or shelf rack installation.
Handling: Heavy-duty side handles for easy handling and wall mounting.
Protection: Built-in protection for over-charge, over-discharge, and over-temperature.
Specifications

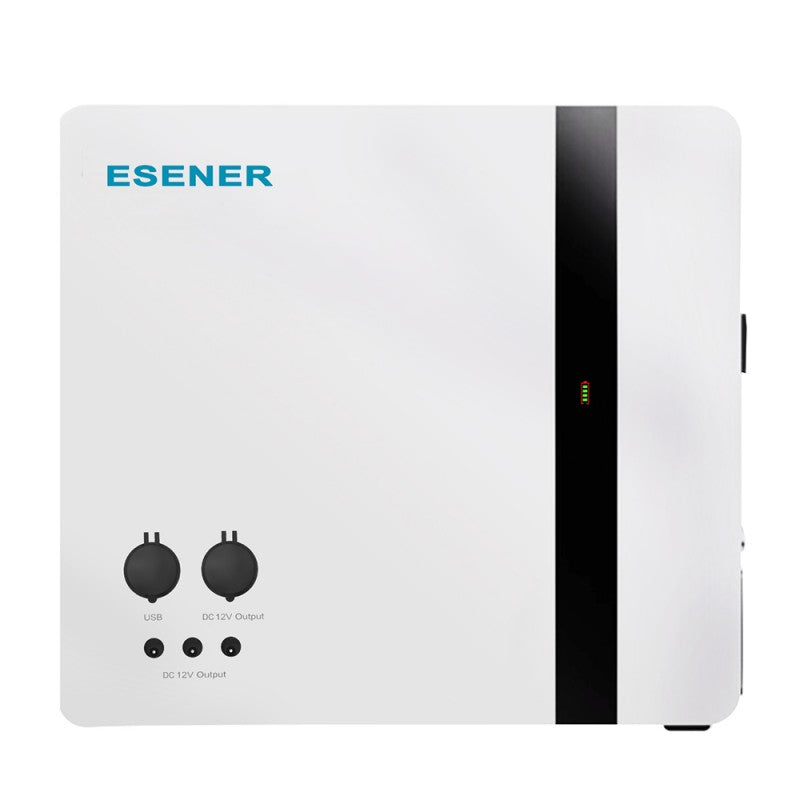

Model: ES-2.56KWh
Rated Capacity (5HR): 100 Ah
Voltage: 25.6V
Discharge Cut-off Voltage: 23V
Equalized Charge Voltage: 29.2V
Max Continuous Charging Current: 100A
Max Continuous Discharging Current: 100A
C Rating: 1C
Weight: Approx. 24.5 kg
Display: LED
Parallel Support: Yes, in parallel & series connection (Max 2s2p)
Dimensions (WDH): 442 x 400 x 143 mm
Ports: 2x parallel instruction ports, 12V cigarette lighter output port, 12V light output port, 220V output port
Cells: New Li-ion cylindrical cells
Warranty: 3 Years
Cycle Life: ±5000 cycles at 80% DOD
Certification: UN38.3, IEC, MSDS
Outer Package Material: White baked lacquer steel case
Operating Temperature: Charging: 0 to +50°C, Discharging: -10 to +50°C, Storage: -10 to +50°C
Protection: Electronic circuit breaker, BMS voltage protection, current limiting
External Charging Methods
Compatible with: 24V inverter, 24V lithium battery charger, 24V solar charge controller.
Power Supply Capacity
TV (40W): 64 hours
WIFI (4W): 640 hours
Light (10W): 256 hours
Phone: 8520 hours
Package Contents
1 x ES-2.56KWh Advanced BMS with Current Limiting Function
