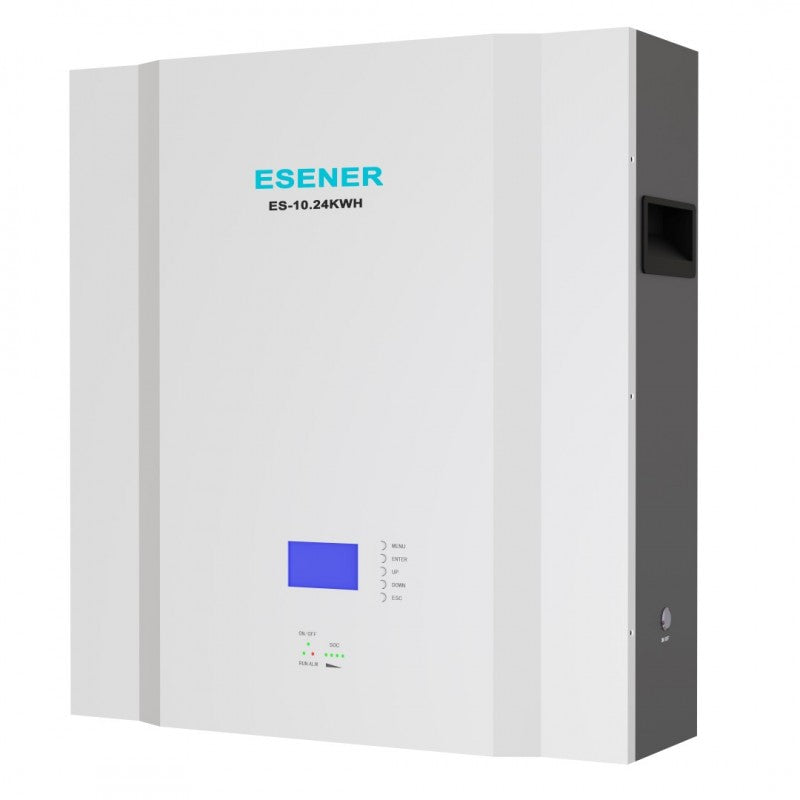

With a built-in battery management system, The ESENER 51.2V 200Ah effectively avoids overcharge, over-discharge, overcurrent, short-circuit, and balance.
The ESENER 51.2V 200Ah is a high-quality lithium-ion phosphate battery with a lifecycle of more than 6000 at 80% DOD, and can be used for 10-15 years.
The battery offers a low internal resistance with excellent continuous high current discharge performance.
Features
Advanced BMS with the current limiting factor
CAN Bus, fully integrates and communicates with leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)
Excellent high-temperature performance
High Cycle Life and Service Life
1C High-Performance Lithium Battery
High Energy Density and Conversion Efficiency
Complete with an integrated Battery Management System
Compatible with most inverters and chargers
Low self-discharge
Easy wall mount or shelf rack installation
Heavy-duty side handles for easy handling and mounting to the wall
Built-in protection for over-charge, over-discharge & over-temperature
Specifications
Model: ES-10.24KWH
Rated Capacity (5HR): 200Ah
Voltage: 51.2V
Discharge Cutoff Voltage: 40.0V
Equalised Charge Voltage: 58.4V
Maximum Continuous Charging Current: 100A
Maximum Continuous Discharging Current: 100A
C. Rating: 1.0C
Weight: Approx. 98kg
Display: LCD
Parallel: Parallel connection up to 15 packs with full communications
Dimensions (WxDxH): 673mm x 618mm x 193mm
Ports: 1x CAN Bus, 1x RS-485 Battery Link ports, 2x Parallel Instruction Ports
Cells: New Li-Ion Prismatic Cells
Design Life: -/+ 15 Years
Cycle Life @ 1C: +/-4000 Cycles @ 100% DOD, Above 6000 cycles @ 80% DOD
Certification: CE, UN38.3, IEC, MSDS
Outer Package Material: White baked lacquer steel case
Operating Temperature: Charging: 0 to 50°C, Discharging: -10 to 50°C, Storage: -10 to 50°C
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Warranty: 5 Years
