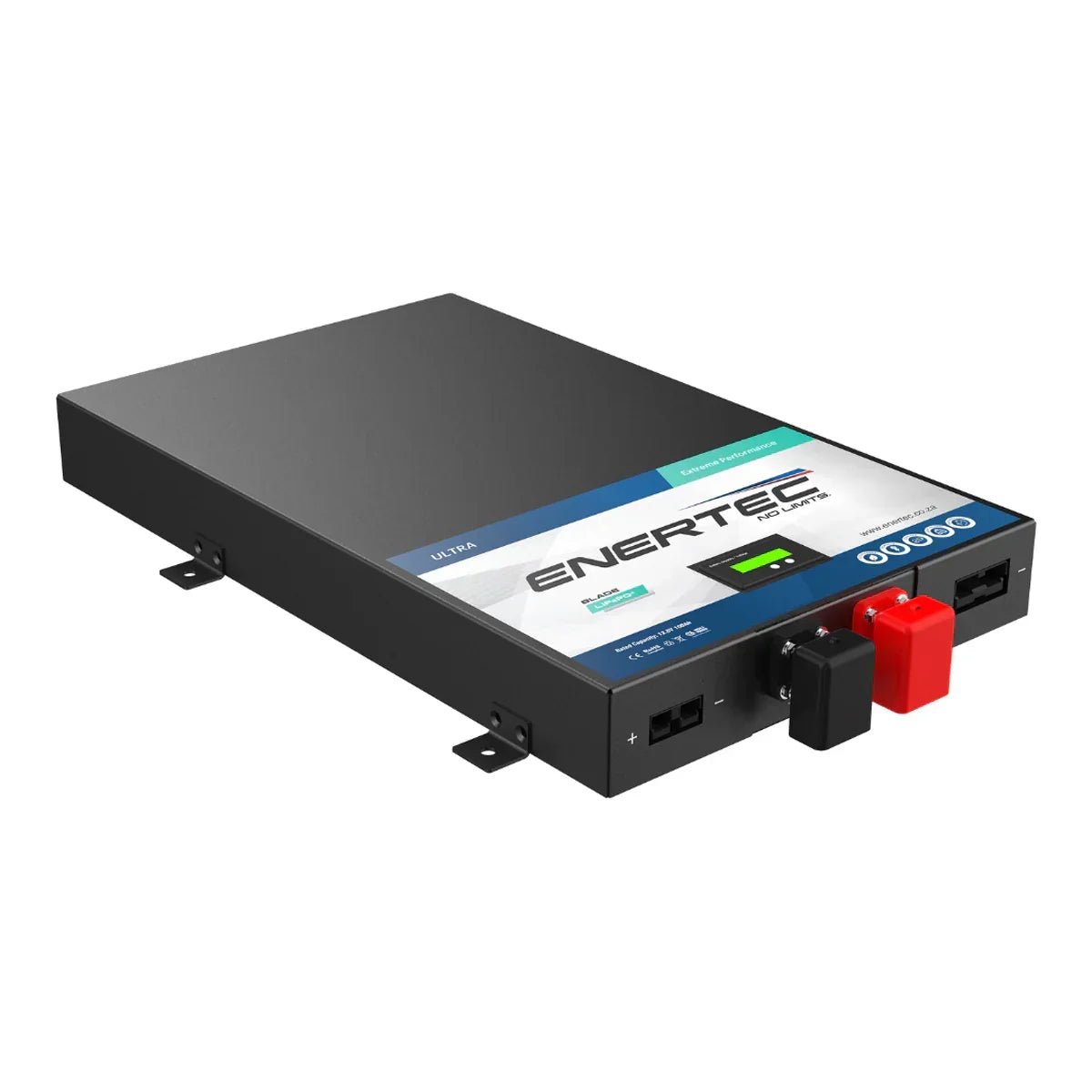

Enertec 12.8V 100Ah Lithium Iron Phosphate Blade Battery
Multipurpose series lithium iron phosphate battery modules are specially designed for multi-applications. These battery modules adopt an metal shell which can be used 24/7. They have outstanding advantages of being waterproof, Bluetooth capabilities, heating features, impact resistance, good insulation performance, easy installation and maintenance free.
Offering 20 times longer cycle life and five times longer float/calendar life than lead-acid batteries. This lightweight battery delivers double the power while maintaining high energy capacity and safety. With a wide temperature range of -20°C to 60°C and a modular design allowing up to six batteries in parallel, they are perfect for marine and leisure applications.
Application
- RV
- Boats
- Overlanding Vehicles
- Caravans
- Trailers
- UPS
- Inverter
Bluetooth - Monitor battery status in real time on the app.
Long Life - Adopting lithium-ion batteries, the service life of the product is 2~3 times that of lead-acid batteries.
Higher Power - Maximum 1.5C discharge for high power output
Extend Easily - Modular Design enables deployment of up to up to 6 battery in parallel.
Compact Design - Smaller size and lighter weight can save more space compared with traditional lead -aid batteries. Smart Balancing - Built-in balance circuit will auto trigger while reaches to set conditions, which will greatly improve the consistence of the battery and extend product lifespan.
Intelligent Display - The battery is configured with a display screen and the local running data can be viewed at any time.
Intelligent BMS - The battery management system provides short-circuit, over voltage, low voltage, over temp, low temp protection.
Technical Information
- Length: 520mm
- Width: 316mm
- Height: 60mm
- Weight: 15kg
- Tech Type: Lithium Iron Phosphate (LiFePO4)
- Layout: M8 Terminal
Technical Specification
| Model |
BLADE |
| Voltage (V) |
12.8 |
| Capacity (Ah) |
100 |
| Energy (Wh) |
1280 |
| Weight (kg) |
15 |
| Dimensions (W*D*H, mm) |
520*316*60 |
| Charge Cut-off Voltage (V) |
14.6 |
| Discharge Cut-off Voltage (V) |
10.8 |
| Standard Charge Current (A) |
50 |
| Max. Charge Current (A) |
Continuous: 100 |
| Max. Discharge Current (A) |
Continuous: 120 |
| Max. Pulse Current (A) |
300 (<3s) |
| Charge Range |
0°C~55°C |
| Discharge Range |
-20°C~60°C |
| Storage Range |
0°C~35°C |
| Built-in BMS |
Voltage/current/temperature management & cell balance |
| Cycle Life |
>4000 times, 0.5C, 80% DOD 25°C |
| Protection Level |
IP20 |
| Parallel |
Max. 4 |
| Battery Case Material |
Metal |
| Battery Case Color |
Black |
| Terminal |
M8+SB 120A+SB 50A |
