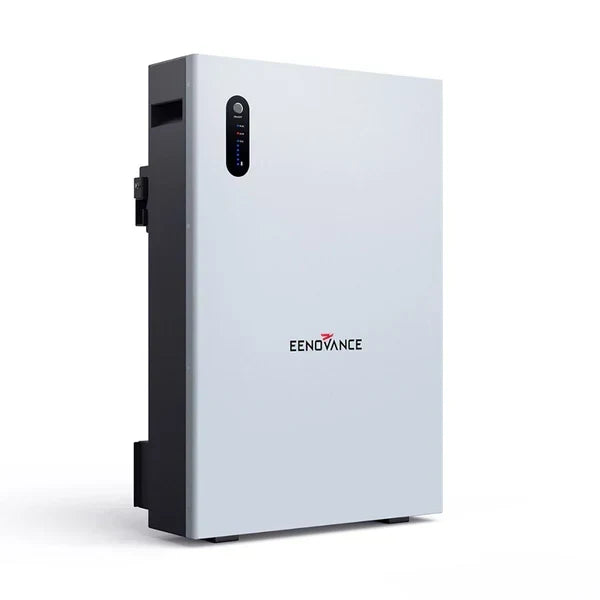

Eenovance Battery LFP Wall Mount 10.65kWh 51.2V
Enjoy safe, long-lasting energy with this LFP battery, offering up to 6,000 cycles of reliable performance. Designed for easy installation, it supports floor or wall mounting with minimal maintenance. Expand effortlessly by connecting up to 15 units, and stay in control with smartphone monitoring for seamless energy management.
Product Features:
Safe & Durable – LFP technology with up to 6,000 cycles for long-term reliability.
Easy Installation – Choose between floor or wall mounting with minimal upkeep.
Expandable System – Connect up to 15 units to meet growing energy needs.
Smart Home Ready – Monitor and control power usage via your smartphone.
Specifications:
Performance
Cell technology LFP [ LiFePO4)
Battery usable energy [1] 10.649 kWh
Nominal voltage 51.2V
Operating voltage 44.8 – 56.16 V
Max. charge and discharge current [2] 200A
Communication
Display SOC status indicator, LED indicator
Communication CAN / RS485 / RS232 / Wi-Fi
General Specification
Dimension (W×D×H)
550x160x836 mm
17.7×5.9×21.0 inch
Weight 89 kg (196.2 lbs)
Installation Floor stand or wall mounted
Operating temperature [3]
Charge : 0 to 50°C [32 to 122°F)
Discharge: -15 to 50°C [5 to 122°F)
Environmental humidity 95%RH (No condensation)
Ingress protection rating IP 20
Cycle life [4] 6000 Cycles or ten [10) years@ 80% DOD/ 25°C / 0.5C, 70% EOL
Scalability Max 15 batteries in parallel
Application ON Grid/ ON Grid+ Backup/ OFF grid
Communication CAN/RS485/TCP
Compatible inverters Refer to compatible inverter list [Compatible with major PCS brands)
Standard Compliance
UN 38.3 / IEC62619 / IEC61000 [More available upon request)
