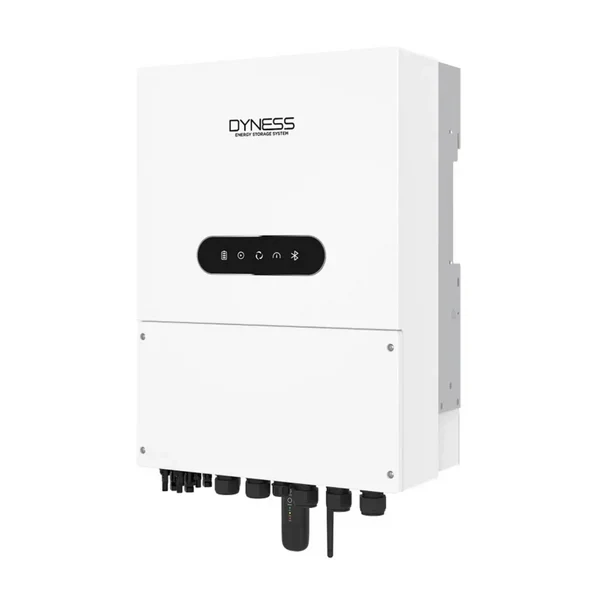

Dyness 8KW Single Phase LV Hybrid Inverter with CT & WIFI Included

Wishlist Compare

R 14,599.00

Generator connectivity with multiple input methods and automatic generator On/Off control
Automatic UPS switching(<4ms)
Supports peak shaving control in both “self-use” and “generator” mode
Up to 135A(5.0/6.0K) and 190A(8.0K) max charge/discharge current
6 customizable charge/discharge time settings
10-second 200% surge power backup overload capability
Supports 1ph and 3ph flexible connection with max 36kW (5.0/6.0K) and 48kW(8.0K) in parallel

Input DC (PV side):
- Recommended max. PV power: 12.8 kW
- Max. input voltage: 600 V
- Rated voltage: 300 V
- Start-up voltage: 90 – 520 V
- Max. input current: 32A/20A
- Max. short circuit current: 36A/30A
Battery:
- Battery type: Li-ion
- Max. charge/discharge power: 8 kW
- Max. charge/discharge current: 190 A
Output AC (Grid side):
- Rated output power: 8 kW
- Max. output current: 40 A
- Max. input current: 50 A
General
- Dimensions(W*H*D): 405*560*215 mm
- Weight: 27kg
- Ingress protection: IP66
