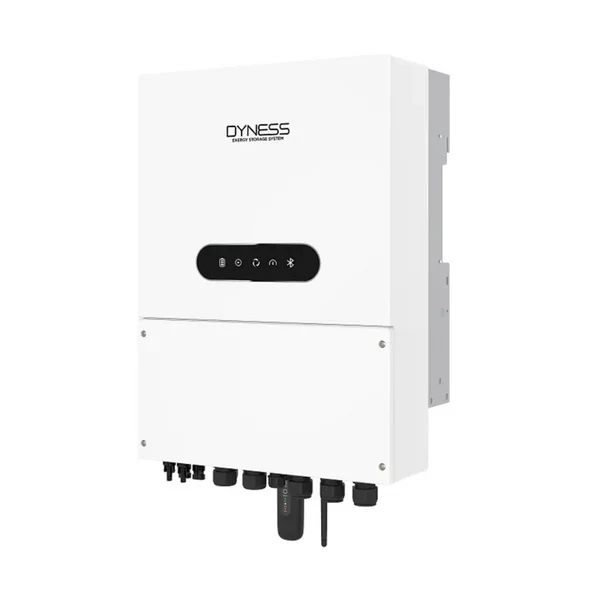

Dyness 6KW Single Phase LV Hybrid Inverter with CT & WIFI Included – Dyne-6.0L-1P-A
The DYNE 5.0/6.0/8.0L-1P-A series is designed for residential hybrid systems. The inverter can work with Dyness low-voltage lithium-ion battery DL5.0X/DL5.0C/ Powerbox Pro to maximize self-consumption and provide backup power if the grid fails and there is not enough PV power to cover load demand.
Product Features:
- Generator connectivity with multiple input methods and automatic generator On/Off control
- Automatic UPS switching(<4ms)
- Supports peak shaving control in both “self-use” and “generator” mode
- Up to 135A(5.0/6.0K) and 190A(8.0K) max charge/discharge current
- 6 customizable charge/discharge time settings
- 10-second 200% surge power backup overload capability
- Supports 1ph and 3ph flexible connection with max 36kW (5.0/6.0K) and 48kW(8.0K) in parallel
Specifications:
-
Input DC (PV side):
- Recommended max. PV power: 9.6 kW
- Max. input voltage: 600 V
- Rated voltage: 300 V
- Start-up voltage: 90 – 520 V
- Max. input current: 16 A / 16 A
- Max. short circuit current: 24 A / 24 A
-
Battery:
- Battery type: Li-ion
- Max. charge/discharge power: 6 kW
- Max. charge/discharge current: 135 A
-
Output AC (Grid side):
- Rated output power: 6 kW
- Max. output current: 30 A
- Max. input current: 40 A
-
General
- Dimensions(W*H*D): 405*560*205mm
- Weight: 24 kg
- Ingress protection: IP66
