Technical Features
- Easy to install: Plug and play, compact, and light, requires 1-2 persons for installation
- Compatible with most well-known Inverters
- Excellent low temp. performance (Optional): Operates at -10 without limitations or attenuation.
- Battery APP (Optional): Real-time monitoring, remote maintenance, and upgrades
Specifications:
General Data:

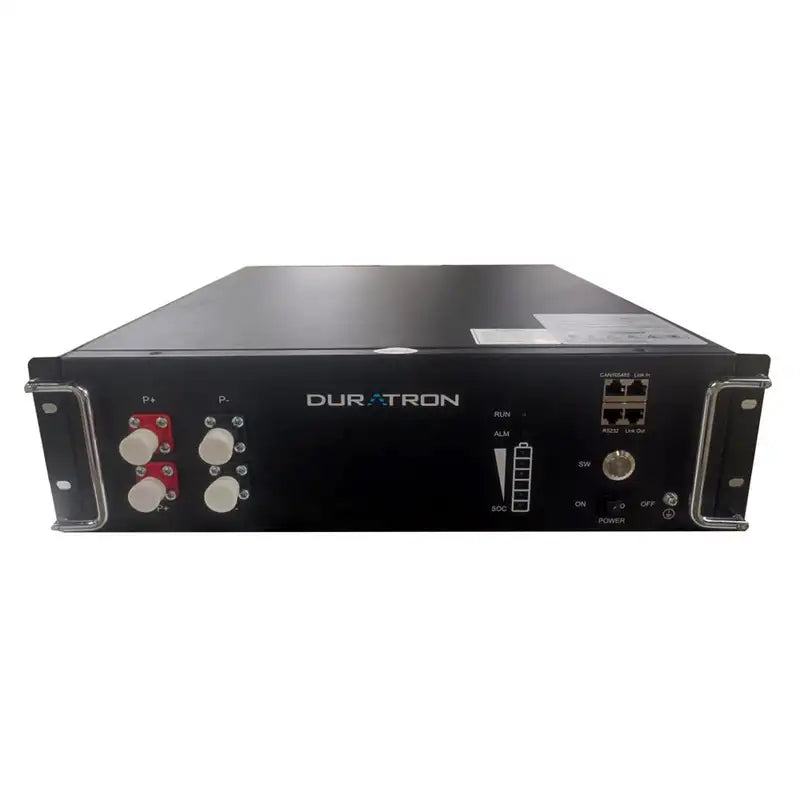

- Battery Type: Lithium Iron Phosphate Battery (LiFePO 4 Battery)
- Model: 48V100AH
- Rated Voltage: 48V
- Rated Capacity: 100Ah
- Charge / Discharge Cut Off Voltage: 55V to 40.5V
- Rated Charge / Discharge Current: 50A / 50A
- Maximum Charge / Discharge Current: 100A(1C)
- External Communication: RS232, RS485
Operating Conditions:
- Installation Location: Indoor
- Work Temperature (Charge): 0 C to 55 C
- Discharge Temperature: -20 C to 60 C
- Storage Temperature: -20 C to 45 C
- Operating Relative Humidity: 10% to 90%RH
- Storage Relative humidity: 5% – 95%RH
- Design Life: 10 Years
- Life Cycle Character: 6000 Cycles
- IP Code: IP20
- Cooling: Natural Cooling
Certifications:
- Safety: IEC62619 / CE / UL1973 / FCC / UL9540A
- Transport: UN38.3
Additional Information:
Product Weight
- Weight: 45Kg
- Dimensions: 44.2cm à 50cmà 13 cm
What’s in the box
1 X Lithium-Ion Battery
1 X Instruction Manual
1 X Communication Cable
1 X Power Negative Cable
1 X Power Positive Cable
4 X Mounting Screws
