Description:
This series of lithium iron phosphate batteries is one of the new energy storage products developed and produced by Deye. It can be used to provide reliable power for various types of equipment and systems. This series is particularly suitable for application scenarios with high power demands, limited installation space, restricted load-bearing, and a long cycle life.
The series comes with a built-in BMS (Battery Management System), which can manage and monitor cell information, including voltage, current, and temperature. Furthermore, the BMS can balance cell charging and discharging to extend cycle life. Multiple batteries can be connected in parallel to expand capacity and power for larger capacity and longer power-supporting duration requirements.
Product Features:
- Safety: Cobalt Free Lithium Iron Phosphate (LFP) Battery, safety and long lifespan, high efficiency and high-power density. Intelligent BMS, providing complete protection.
- Reliable: Built-in intelligent BMS, providing complete protection. Natural cooling, IP20, wide temperature range: -20°C to 55°C.
- Flexible: Modular design, easy to expand, Max. 6 clusters in parallel(36 pcs), Max. capacity of 184kWh. Suited to residential and commercial applications for increasing the self-consumption ratio.
- Convenient: Battery module auto networking, automatic IP addressing, easy maintenance, remotely monitoring and upgrade the firmware.
- Eco-Friendly: Use environmental protection materials, the whole module nontoxic, pollution-free
- Flat and stackable design, floor-mounted, no wiring and extra fixing screws, rapid and easy installation.
Specifications:

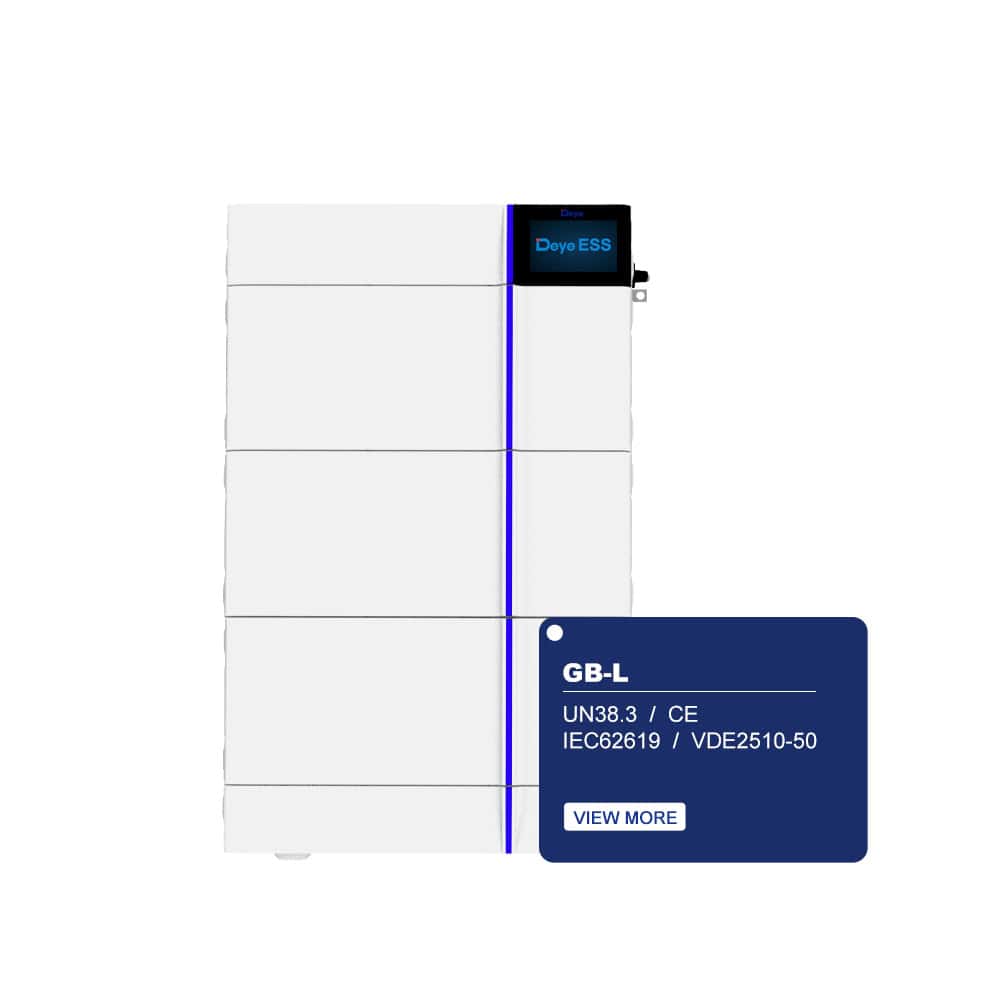

Battery system model GB-L8
Battery Module Qty In Series (Optional) 2
System Nominal Voltage (V) 204.8
System Energy (kWh) 8.18
System Usable Energy (kWh) 7.36
Dimension (W/D/H, mm) 540*385*650
Weight(kg) 97
Recommend Depth of Discharge 0.9
Warranty:
10 Years T’s & C’s Apply.
