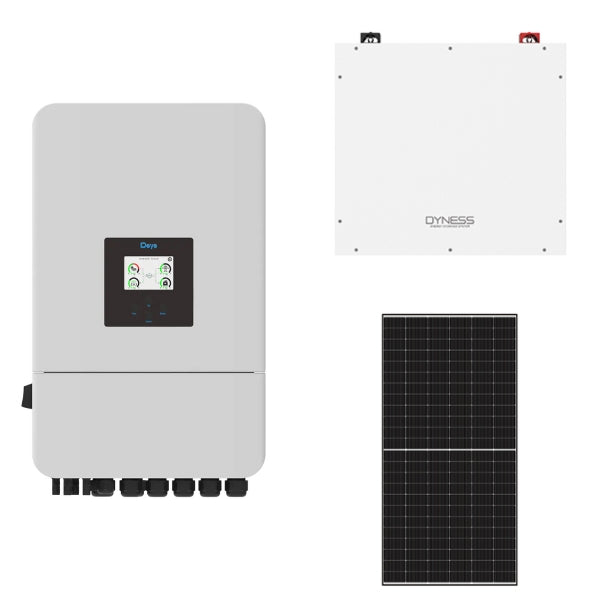

Deye 8kW Solar, Inverter & Battery Combo Deal – 1 X Deye 8kW Inverter, 2 X 5kW Dyness Lithium Ion Battery & 16 X Sunova 585W Solar Panels
Whats Included:
16 x Sunova Solar 585W 144 Cell Tangra™ M Solar Panel – SS-585-72MDH(T)
1 x Deye 8kW Hybrid Inverter (Single Phase) – SUN-8K-SG05LP1-EU-SM2 (New Gen)
2 x Dyness 5.12kWh 100Ah LiFePo4 Lithium Ion Battery – DL5.0C (New Gen)
More Details:
Sunova Solar 585W 144 Cell Tangra™ M Solar Panel
Model SS-585-72MDH(T)
Half-Cut Cell Technology – Divides panel in half, allowing top & bottom to run independently generating more energy even when half is shaded.
Combines creative technology effectively & extremely improves the module efficiency & power output.
585W Solar Panel.
Equipped with 144 Cells.
30 Year Lifespan Delivers 10-30% More Power compared with Conventional P-Type Modules.
The Natural Lack of LID in the N-Type Solar Cell can Increase Power Generation.
Excellent Low Irradiance Performance.
Better Light Trapping and Current Collection to Improve Module Power Output and Reliability.
Industry-Leading, Lowest Thermal Coefficient.
Optimized Electrical Design and Lower Operating Current for Reduced Hot Spot Loss and Better Temperature.
Certified to withstand 2400 Pa of Wind Load and 5400 Pa of Snow Load.
100% Triple EL Test, Which Greatly Reduces the Hidden Cracks Rate.
Number of Cells: 144 Cells
Cell Type: N-Type Monocrystalline.
Glass: Tempered, 3.2mm AR, High Transmittance, Low Iron.
Silver/Black Anodized Aluminium Alloy Frame.
Junction Box: IP68, 3 Bypass Diodes.
Connector: MC4 Compatible.
Mechanical Load: Wind Load: 5400 Pa; Wind Load: 2400 Pa
Maximum Power: 585W (STC) & 436W (NOCT)
Open-Circuit Voltage: 52.09V (STC) & 49.17V (NOCT)
Short-Circuit Current: 13.68A (STC) & 11.05A (NOCT)
Maximum Power Voltage: 44.61V (STC) & 41.76V (NOCT)
Maximum Power Current: 13.12A (STC) & 10.44A (NOCT)
Module Efficiency: 22.60%
Power Tolerance: 0,+5W
Maximum System Voltage: 1500V
Maximum Rated Fuse Current: 25A
Current Operating Temperature: -40°C to 85°C
Comprehensive Certificates: ISO 9001/ISO 14001/ISO 45001/SA 8000
Weight: 27.2Kg
Dimensions (L x W x H): 2278 x 1134 x 30 mm
Mounting Kits & Accessories Not Included – Sold Separately.
15 Year Limited Product Warranty.
Deye 8kW Hybrid Inverter (1 Phase)
Model SUN-8K-SG05LP1-EU-SM2
Wi-Fi Ready – works via Solarman App.
Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
Deye Hybrid Inverter – Advanced Solar Energy Solution
Colorful touch LCD display – user-friendly interface provides real-time monitoring and simplified control of system operations
IP65 protection rating – dust-tight and water-resistant, ideal for both indoor and outdoor installations
AC coupling support – retrofits seamlessly into existing solar systems, allowing battery integration without replacing current infrastructure
Parallel operation support – connect up to 16 pcs in parallel for expanded capacity in on-grid or off-grid setups
Compatible with multiple batteries in parallel – scalable storage solutions tailored to system requirements
Battery type: Supports both lead-acid and lithium-ion batteries
Battery voltage range: 40–60V
Maximum charging current: 190A
Maximum discharging current: 190A
Number of battery inputs: 1
Supports diesel generator integration – stores surplus generator power, increasing system reliability and off-grid resilience
6 configurable time periods for charging/discharging – optimize energy usage based on time-of-use tariffs or load demands
Maximum PV access power: 16,000W
Maximum PV input power: 12,800W
Smart monitoring platform – enables remote shutdown, firmware updates, and system parameter adjustments, simplifying maintenance and enhancing
control
Ideal for residential, commercial, or hybrid applications needing high performance and adaptability
Dimensions (W x H x D): 366 x 598.5 x 237 mm
5 Year Product Warranty (Extended to 10 Years if paired with Dyness/Volta Battery).
Dyness 5.12kWh 100Ah LiFePo4 Lithium Ion Battery
Model DL5.0C
Advanced LiFePO₄ Lithium Iron Phosphate technology.
5.12kWh nominal battery energy with 100Ah capacity and 51.2V voltage.
Over 6000 charge/discharge cycles for long-lasting performance.
Depth of Discharge (DOD): 90% for higher usable capacity and system efficiency.
Recommended charge/discharge current: 50A with peak discharge up to 110A (15 seconds).
Wide temperature tolerance: Charge 0°C to 55°C / Discharge -20°C to 55°C.
High compatibility – works with popular inverter brands including Victron, Growatt, Solis, SMA, Luxpower, GoodWe, and more.
Expandable system – connect up to 50 units in parallel for higher capacity needs.
Compact & sleek for Dyness DL5.0C-5.12 kWh Battery: Dimensions 558 × 545 × 150 mm and 49.9 kg weight.
Supports RS485, CAN, RS232 communication protocols – easy integration with inverters and energy systems.
Optional Wi-Fi module for remote monitoring and system visibility.
Certified to international safety standards: UN38.3, CE-EMC, IEC62619, CEI-021, GOST-R.
Suitable for home, business, solar storage, and backup systems.
IP20 rated enclosure – safe for indoor installation.
Quiet, safe, and low-maintenance energy solution for off-grid and grid-tied systems.
Designed to deliver consistent performance and reliable backup power.
Add to your solar setup or upgrade your battery bank with ease.
10 Year Limited Product Warranty.
