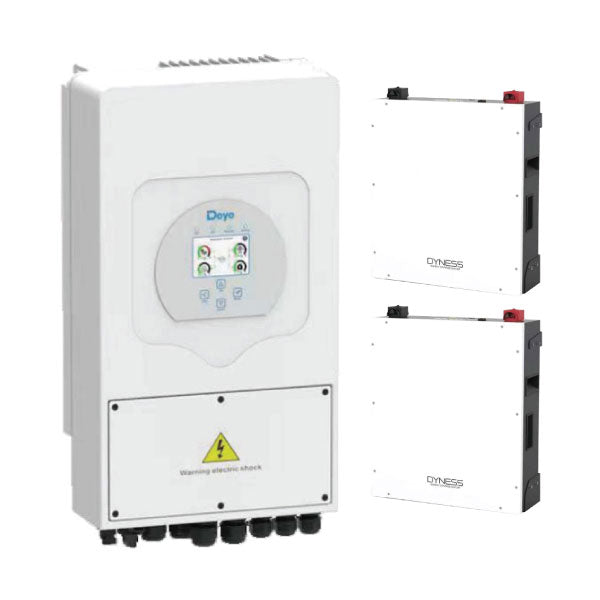

Deye 5kW Inverter & Battery Combo Deal – 1 X Deye 5kW Inverter & 2 X Dyness 5kW 100Ah 51.2V Lithium Ion Batteries

• Deye 5kW Inverter & Battery Combo Deal – 1 X Deye 5kW Inverter & 2 X Dyness 5kW 100Ah 51.2V Lithium Ion Batteries
• Whats Included:
  • 1 x Deye 5kW Hybrid Inverter (1 Phase) – SUN-5K-SG01LP1-EU
  • 2 x Dyness 5.12kWh 100Ah LiFePo4 Lithium Ion Battery – DL5.0C (New Gen)

More Details:

• Deye 5kW Hybrid Inverter (1 Phase)
  • Model SUN-5K-SG01LP1-EU
  • Equipped with colourful touch LCD.
  • Wi-Fi Ready – works via Solarman App.
  • Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
  • DC Couple & AC Couple – retrofit existing solar system.
  • Maximum 16pcs parallel for on-grid & off-grid operation – multiple battery parallel supported.
  • 6 Time periods for battery charge/discharge.
  • Storing energy from diesel generator supported.
  • Grid Type: Single Phase
  • Protection Degree: IP65
  • Noise Level: <30dB
  • Maximum Charge/Discharge Current: 120A
  • Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
  • Maximum DC Input Power: 6500W
  • MPPT Range: 125-425V
  • 2 x MPPT
  • Start-up Voltage: 150V
  • AC Output & UPS Power: 5000W
  • Maximum AC Power: 5500W
  • AC Rated Output Current: 221.7A
  • Maximum AC Current: 25A
  • Maximum Efficiency: 97.60%
  • Euro Efficiency: 96.50%
  • MPPT Efficiency: 99.90%
  • Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
  • Battery Voltage Range: 40-60V
  • Communication with BMS: CAN/RS485
  • Smart Cooling
  • Operation Temperature: -25°C to 60°C, >45°C Derating
  • Installation Type: Wall Mounted.
  • Weight: 20.5Kg
  • Dimensions (W x H x D): 330 x 580 x 232 mm
  • 5 Year Product Warranty (Extended to 10 Years if paired with Dyness/Volta Battery).
  • Recommended Solar Panel Configuration:
    • Min 3 Panels – Max 14 Panels (Panel Size: 180W to 480W Panels) (7 Panels per MPPT)
    • Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
• Dyness 5.12kWh 100Ah LiFePo4 Lithium Ion Battery
  • Model DL5.0C
  • Advanced LiFePO₄ Lithium Iron Phosphate technology.
  • 5.12kWh nominal battery energy with 100Ah capacity and 51.2V voltage.
  • Over 6000 charge/discharge cycles for long-lasting performance.
  • Depth of Discharge (DOD): 90% for higher usable capacity and system efficiency.
  • Recommended charge/discharge current: 50A with peak discharge up to 110A (15 seconds).
  • Wide temperature tolerance: Charge 0°C to 55°C / Discharge -20°C to 55°C.
  • High compatibility – works with popular inverter brands including Victron, Growatt, Solis, SMA, Luxpower, GoodWe, and more.
  • Expandable system – connect up to 50 units in parallel for higher capacity needs.
  • Compact & sleek for Dyness DL5.0C-5.12 kWh Battery: Dimensions 558 × 545 × 150 mm and 49.9 kg weight.
  • Supports RS485, CAN, RS232 communication protocols – easy integration with inverters and energy systems.
  • Optional Wi-Fi module for remote monitoring and system visibility.
  • Certified to international safety standards: UN38.3, CE-EMC, IEC62619, CEI-021, GOST-R.
  • Suitable for home, business, solar storage, and backup systems.
  • IP20 rated enclosure – safe for indoor installation.
  • Quiet, safe, and low-maintenance energy solution for off-grid and grid-tied systems.
  • Designed to deliver consistent performance and reliable backup power.
  • Add to your solar setup or upgrade your battery bank with ease.
  • 10 Year Limited Product Warranty.
• Refer To Brochure For Detailed Product Specifications.
• Product might vary from depicted images.
• Free Delivery Nationwide – South Africa
