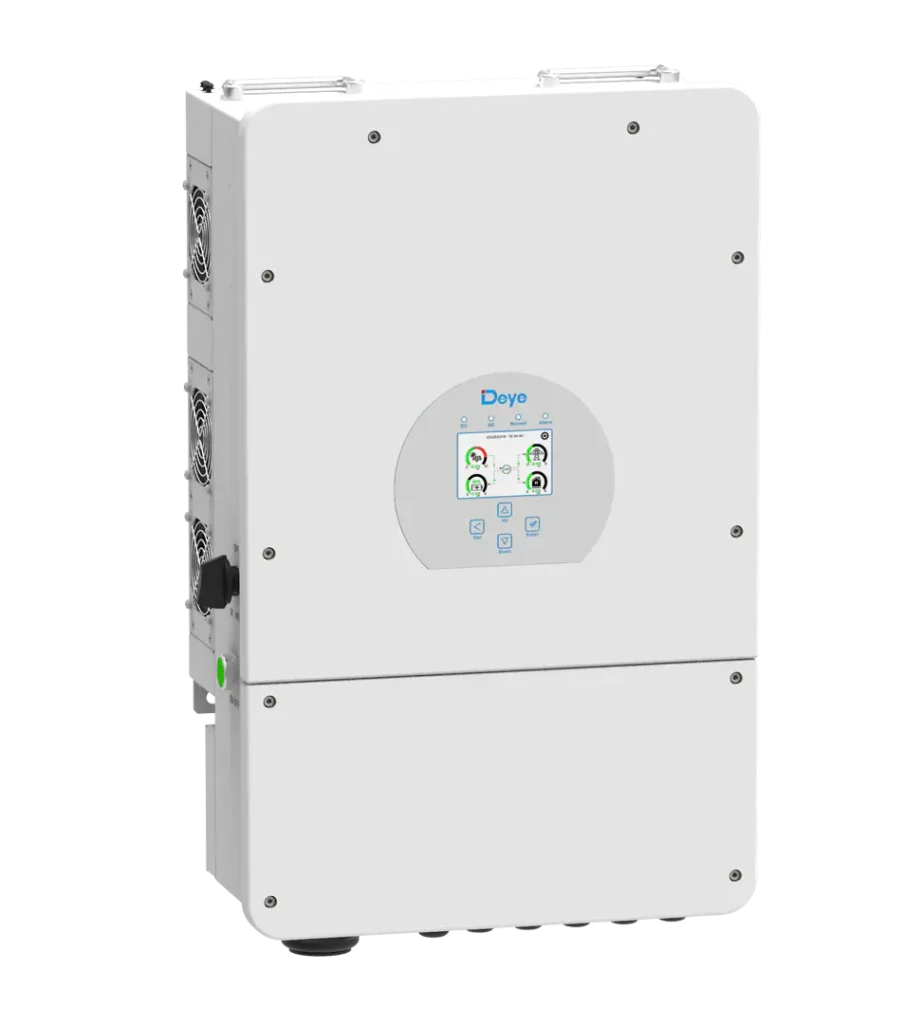

The Deye 3.6kW Hybrid Inverter is a high quality IP65 rated inverter with NRS 097 : 2017 and IEC 62116 approval.
It is rated for 3.6kW 230V output single phase, 35A passthrough capability and 15.7A generation capacity.
It features:
- On-grid blending of PV power and utility power with export limit control to bring down your electricity bills
- Off-grid backup power capability, perfect for loadshedding events
- 3600W continuous output power and peak surge capacity of 7200W for 10 seconds
- Ability to expand system by parallel connection of additional inverters
- Up to 4680W solar PV power input
- 2 x MPPT inputs rated for high voltage solar panel DC voltages up to 500V and 13A each
- Ideal for optimising PV module string level output power and systems with two separate PV module arrays
- Integrated lightning protection from solar inputs
- 48V Battery backup input for use with Lead-Acid and Lithium-Ion batteries using included CAN or RS485 communication port
- Wi-Fi connectivity dongle for monitoring via Android or Apple phones
- Dedicated onboard input and changeover for use with backup generator
- 5 Year warrantee
Higher yields
-
-
- Improve self-consumption ratio up to 80%, reducing your electricity bill
- DC/AC ratio up to 1.3, completely suitable for double-side PV modular
- Two MPPT design, Max. efficiency of 97.6%
User-friendly
-
-
- LCD Touch screen and buttons, easy operation
- Compatible with lithium-ion battery and lead acid battery
- Web browser and mobile App monitoring supported
Reliable
-
-
- PV lightning protection, Anti-islanding protection, Leakage current protection etc
- IP65 protection degree, adapt to indoor and outdoor use
- Automatically switch from on-grid to off-grid mode within 5ms
- Zero exporting function, fast reaction within 200ms in zero export mode
Smart
-
- Programmable charging and discharging schedule
- Both wind turbines and solar panels can be connected as input power
- Max. 16 units can be paralleled for higher system power
- Retrofitting of existing solar system to energy storage system
