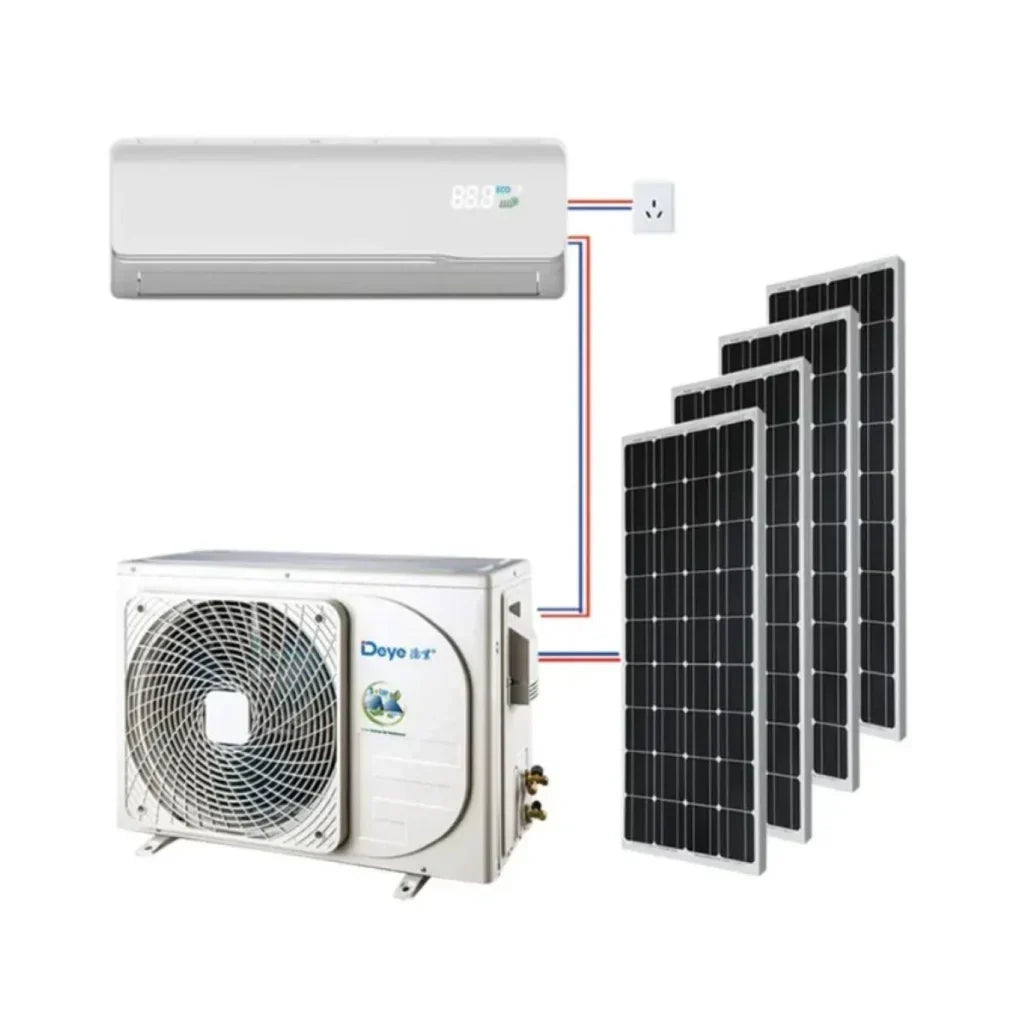

Keep your home cool in the summer and warm in the winter with this energy-efficient hybrid air conditioner. The Deye Hybrid ACDC Solar Air Conditioner requires no batteries and only a few photovoltaic (PV) panels to deliver significant energy savings.
During the day, when cooling is most needed, the unit can operate partially or entirely on solar power, achieving maximum efficiency. At night, its advanced energy-saving technology continues to reduce power consumption.
The built-in Wi-Fi functionality allows you to control the unit remotely, set daily and weekly timers, and view AC/DC energy usage and historical data.
Key Features
100% energy savings during daytime with solar panel-only operation
T3 compressor for reliable performance in high temperatures
AC grid power limiter (adjustable from 0–600W)
Three operation modes: AC power, DC power, and AC+DC mix (Auto Balance)
No inverter, battery, or charge controller required
Fully DC-driven system
Wide operating temperature range: -10℃ to 58℃
Wi-Fi enabled with remote control, scheduling, and full power consumption monitoring
Long warranty for extended peace of mind
Technical Specifications
AC Power Supply: 1Ph 208V–240V / 50–60Hz
DC Power Input (PV in Series): 80–380V
DC Power Current: ≤12A
Recommended Solar Panels: 3–8 × 330W in series
Cooling Capacity: 6450W (1800–7900W) / 22,000 BTU (6100–27000 BTU)
Cooling Power Input: 1790W (300–3200W)
Heating Capacity: 7800W (1800–9100W)
Heating Power Input: 2290W (300–3500W)
EER: 3.60 W/W (12.30 BTU/W)
COP: 3.40 W/W (11.60 BTU/W)
Dehumidification Capacity: 2.5 L/h
Compressor: Model 5RD198, 2× Rotary Inverter, Panasonic
Indoor Fan Motor: BLDC-45W
Indoor Noise Level (Turbo): 50 dB(A)
Indoor Dimensions (W×H×D): 1080 × 330 × 237 mm
Indoor Packing Dimensions: 1140 × 300 × 382 mm
Indoor Weight (Net/Gross): 15.0 / 18.5 kg
Outdoor Fan Motor: BLDC-75W
Outdoor Noise Level: 58 dB(A)
Outdoor Dimensions (W×H×D): 900 × 700 × 337 mm
Outdoor Packing Dimensions: 1006 × 755 × 418 mm
Outdoor Weight (Net/Gross): 50 / 54.5 kg
Refrigerant Type: R410A
Max Design Pressure: 4.3 / 1.5 MPa
Refrigerant Pipe Size (Gas / Liquid): 1/2″ / 1/4″
Max Refrigerant Pipe Length: 25 m
Max Height Difference: 10 m
Included Copper Pipe Length: 4 m
Connection Wire Length: 5 m
Electronic Expansion Valve: Yes
Loading Quantity (40″ HQ / 20″ GP): 115 / 50 sets
