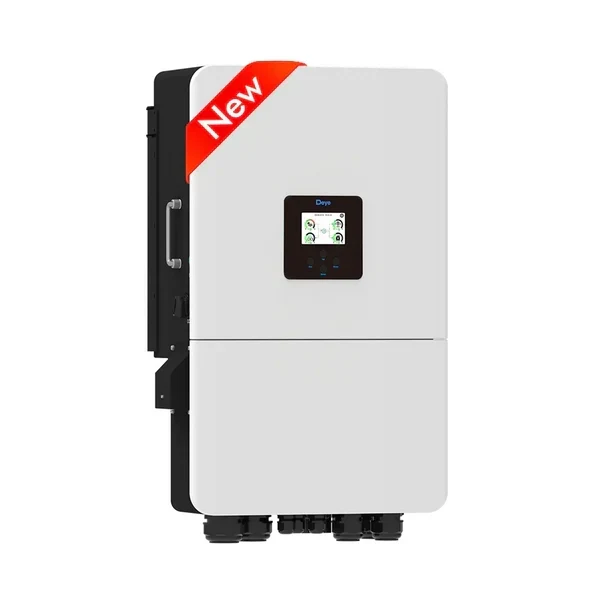

The Deye 20kW 48V Three Phase Hybrid Inverter is a powerful and flexible solution for both on-grid and off-grid solar systems. Designed for maximum efficiency and scalability, this inverter features a 48V low voltage battery with a transformer isolation design, ensuring safe and stable operation.
With its advanced features and robust IP65-rated design, this new-generation hybrid inverter is perfect for residential, commercial, and industrial energy storage applications.
Product Features:
- 100% unbalanced output, each phase; Max. output up to 50% rated power
- AC couple to retrofit existing solar system
- Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current of 350A
- 48V low voltage battery, transformer isolation design
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator
Specifications:
-
Battery Input Data
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range (V): 40-60
- Max. Charging Current (A): 350
- Max. Discharging Current (A): 350
- Charging Strategy for Li-ion Battery: Self-adaption to BMS
- Number of Battery Input: 1
-
PV String Input Data
- Max. PV Access Power (W): 40000
- Max. PV Input Power (W): 32000
- Max. PV Input Voltage (V): 800
- Start-up Voltage (V): 160
- MPPT Voltage Range (V): 160-650
- Rated PV Input Voltage (V): 550
- Max. Operating PV Input Current (A): 36+36
- Max. Input Short-Circuit Current (A): 54+54
- No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
-
AC Input/Output Data
- Rated AC Input/Output Active Power (W): 20000
- Max. AC Input/Output Apparent Power (VA): 22000
- Rated AC Input/Output Current (A): 30.4/29
- Max. AC Input/Output Current (A): 33.4/31.9
- Max. Continuous AC Passthrough (grid to load) (A): 70
- Peak Power (off-grid) (W): 2 times of rated power, 10s
- Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
- Rated Input/Output Voltage/Range (V): 220/380V, 230/400V 0.85Un-1.1Un
- Rated Input/Output Grid Frequency/Range(Hz): 50/45-55, 60/55-65
- Grid Connection Form: 3L+N+PE
- Total Current Harmonic Distortion THDi: <3% (of nominal power
- DC Injection Current: <0.5% In
-
Efficiency
- Max. Efficiency: 97.6%
- Euro Efficiency: 97.0%
- MPPT Efficiency; >99%
-
Interface
- Communication Interface: RS485/RS232/CAN
- Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN(optional)
-
General Data
- Operating Temperature Range (℃): -40 to +60℃, >45℃ Derating
- Noise (dB): <60
- Ingress Protection(IP) Rating: IP 65
- Inverter Topology: Non-Isolated
- Cabinet Size (WxHxD mm): 456×750×268.5 (Excluding Connectors and Brackets)
- Weight (kg): 50.6
- Type of Cooling: Intelligent Air Cooling
- Warranty: 5 Years/10 Years, the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
- Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
- Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
