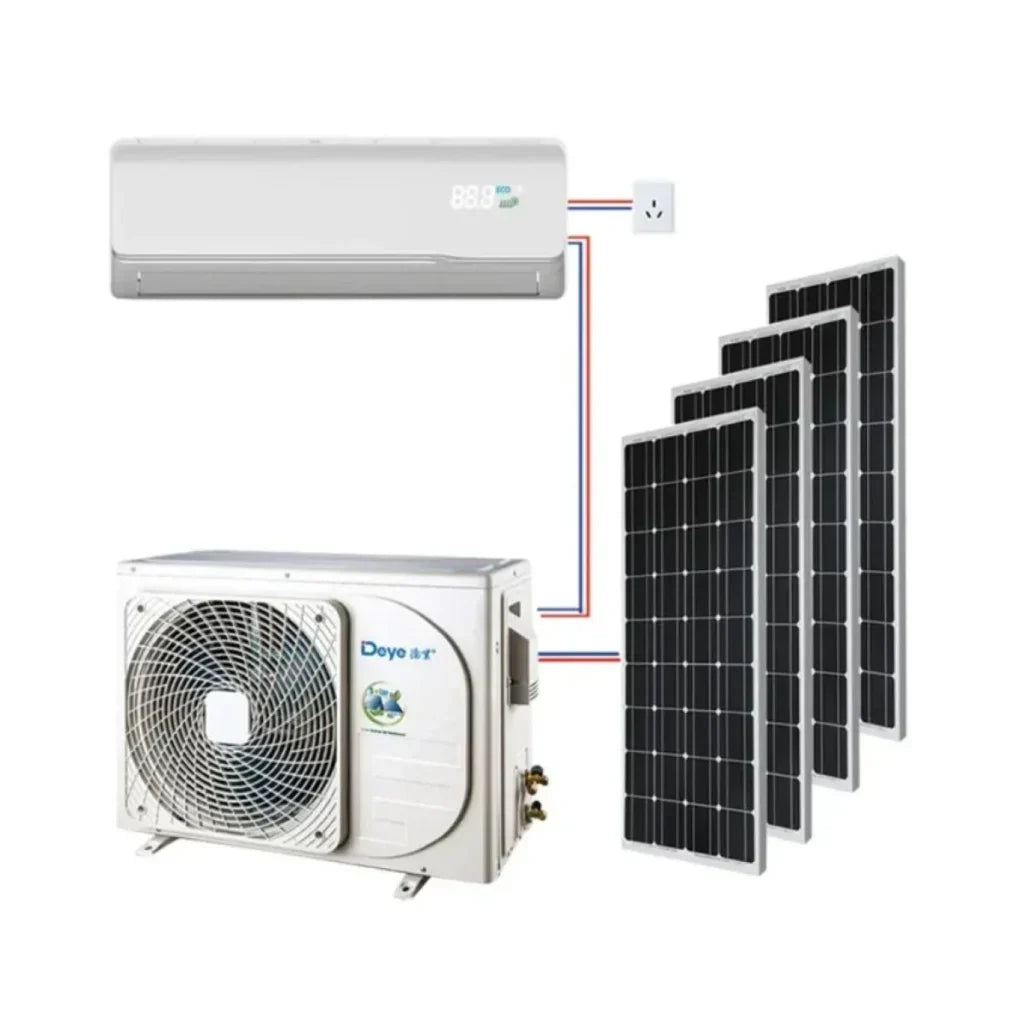

The Deye Hybrid ACDC Solar Air Conditioner delivers powerful, energy-efficient climate control without the need for batteries. With just a few photovoltaic panels, you can achieve substantial savings. During the day, the unit can operate partially or entirely on solar energy—right when air conditioning is needed most. At night, its high efficiency ensures continued savings using grid power.
Thanks to built-in Wi-Fi, the system offers complete control with real-time monitoring, daily and weekly scheduling, and access to AC/DC power consumption history. This air conditioner is ideal for homes or businesses looking to reduce energy costs and carbon footprints.
Key Features
100% daytime energy savings with direct solar panel operation
T3-grade compressor for robust performance in high temperatures
AC grid power limiter: configurable from 0–600W
Supports three modes: AC power, DC power, or AC+DC hybrid mode (auto-balance)
No inverter, battery, or charge controller required
Fully DC-driven system
Wide operating temperature range: -10℃ to 58℃
Wi-Fi enabled for remote control, timer settings, and energy usage tracking
Long warranty period for added peace of mind
Technical Specifications
AC Power Supply: 1Ph 208V–240V / 50–60Hz
DC Power Input (PV in Series): 80–380V
DC Power Current: ≤12A
Recommended Solar Panels: 3–6 × 330W in series
Cooling Capacity: 5070W (1200–6000W) / 17,300 BTU (4100–20400 BTU)
Cooling Power Input: 1400W (220–2100W)
Heating Capacity: 6100W (1200–6800W)
Heating Power Input: 1770W (220–2500W)
EER: 3.60 W/W (12.35 BTU/W)
COP: 3.45 W/W (11.75 BTU/W)
Dehumidification Capacity: 1.7 L/h
Compressor Model: WHP05600
Compressor Type: 2× Rotary Inverter
Compressor Brand: Highly
Indoor Fan Motor: BLDC-45W
Indoor Noise Level (Turbo): 46 dB(A)
Indoor Unit Dimensions (W×H×D): 1080 × 330 × 237 mm
Indoor Packing Dimensions: 1140 × 300 × 382 mm
Indoor Weight (Net/Gross): 15.0 / 18.5 kg
Outdoor Fan Motor: BLDC-55W
Outdoor Noise Level: 55 dB(A)
Outdoor Unit Dimensions (W×H×D): 802 × 564 × 323 mm
Outdoor Packing Dimensions: 910 × 622 × 405 mm
Outdoor Weight (Net/Gross): 37 / 42.0 kg
Refrigerant Type: R410A
Max Design Pressure: 4.3 / 1.5 MPa
Refrigerant Pipe Size (Gas / Liquid): 1/2″ / 1/4″
Max Refrigerant Pipe Length: 20 m
Max Height Difference: 10 m
Included Copper Pipe Length: 4 m
Connection Wire Length: 5 m
Electronic Expansion Valve: Yes
Loading Quantity (40″ HQ / 20″ GP): 160 / 75 sets
