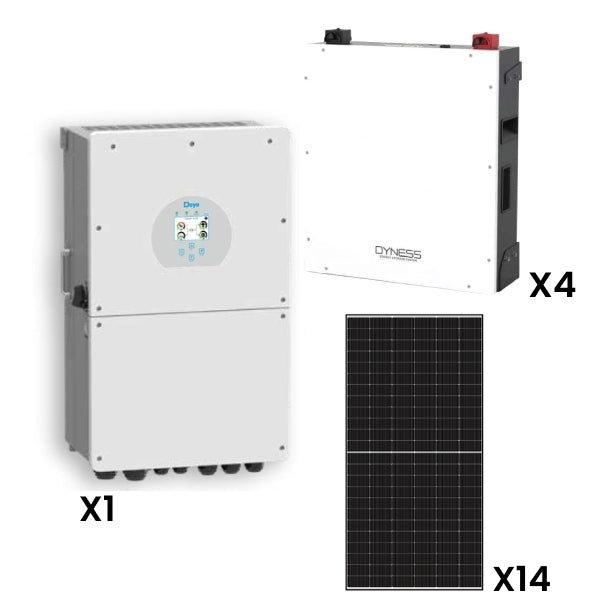

Deye 12kW Solar, Inverter & Battery Combo Deal – 1 X Deye 12kW Inverter (1 Phase), 4 X 5kW Dyness Lithium Ion Battery & 14 X Sunova 585W Solar Panels
Whats Included:
14 x Sunova Solar 585W 144 Cell Tangra™ M Solar Panel – SS-585-72MDH(T)
1 x Deye 12kW Hybrid Inverter (1 Phase) – SUN-12K-SG01LP1-EU
4 x Dyness 5.12kWh 100Ah LiFePo4 Lithium Ion Battery – DL5.0C (New Gen)
More Details:
Sunova Solar 585W 144 Cell Tangra™ M Solar Panel
Model SS-585-72MDH(T)
Half-Cut Cell Technology – Divides panel in half, allowing top & bottom to run independently generating more energy even when half is shaded.
Combines creative technology effectively & extremely improves the module efficiency & power output.
585W Solar Panel.
Equipped with 144 Cells.
30 Year Lifespan Delivers 10-30% More Power compared with Conventional P-Type Modules.
The Natural Lack of LID in the N-Type Solar Cell can Increase Power Generation.
Excellent Low Irradiance Performance.
Better Light Trapping and Current Collection to Improve Module Power Output and Reliability.
Industry-Leading, Lowest Thermal Coefficient.
Optimized Electrical Design and Lower Operating Current for Reduced Hot Spot Loss and Better Temperature.
Certified to withstand 2400 Pa of Wind Load and 5400 Pa of Snow Load.
100% Triple EL Test, Which Greatly Reduces the Hidden Cracks Rate.
Number of Cells: 144 Cells
Cell Type: N-Type Monocrystalline.
Glass: Tempered, 3.2mm AR, High Transmittance, Low Iron.
Silver/Black Anodized Aluminium Alloy Frame.
Junction Box: IP68, 3 Bypass Diodes.
Connector: MC4 Compatible.
Mechanical Load: Wind Load: 5400 Pa; Wind Load: 2400 Pa
Maximum Power: 585W (STC) & 436W (NOCT)
Open-Circuit Voltage: 52.09V (STC) & 49.17V (NOCT)
Short-Circuit Current: 13.68A (STC) & 11.05A (NOCT)
Maximum Power Voltage: 44.61V (STC) & 41.76V (NOCT)
Maximum Power Current: 13.12A (STC) & 10.44A (NOCT)
Module Efficiency: 22.60%
Power Tolerance: 0,+5W
Maximum System Voltage: 1500V
Maximum Rated Fuse Current: 25A
Current Operating Temperature: -40°C to 85°C
Comprehensive Certificates: ISO 9001/ISO 14001/ISO 45001/SA 8000
Weight: 27.2Kg
Dimensions (L x W x H): 2278 x 1134 x 30 mm
Mounting Kits & Accessories Not Included – Sold Separately.
15 Year Limited Product Warranty. T & C’s Apply
Deye 12kW Hybrid Inverter (1 Phase)
Model SUN-12K-SG01LP1-EU
Wi-Fi Ready – works via Solarman App.
Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
DC Couple & AC Couple – retrofit existing solar system.
Maximum 16pcs parallel for on-grid & off-grid operation – multiple battery parallel supported.
6 Time periods for battery charge/discharge.
Storing energy from diesel generator supported.
Grid Type: Single Phase
Protection Degree: IP65
Noise Level: <30dB Maximum Charge/Discharge Current: 220A Charging Strategy for Lithium Ion Battery: Self-adaption to BMS Maximum DC Input Power: 18200W Maximum DC Input Voltage: 500V MPPT Range: 150-425V 3 x MPPT Start-up Voltage: 125V AC Output & UPS Power: 12000W Backup Power: 10000W Backup Rated Current: 43.5A Backup UPS: 6ms Auto switchover time. Maximum Efficiency: 97.60% Euro Efficiency: 96.50% MPPT Efficiency: 99.90% Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately) Battery Voltage Range: 40-60V Communication with BMS: CAN/RS485 Smart Cooling Operation Temperature: -45°C to 60°C, >45°C Derating
Installation Type: Wall Mounted.
Weight: 48.5Kg
Dimensions (W x H x D): 464 x 798.4 x 300 mm
5 Year Product Warranty (Extended to 10 Years if paired with Dyness/Volta Battery).
Dyness 5.12kWh 100Ah LiFePo4 Lithium Ion Battery
Model DL5.0C
Advanced LiFePO₄ Lithium Iron Phosphate technology.
5.12kWh nominal battery energy with 100Ah capacity and 51.2V voltage.
Over 6000 charge/discharge cycles for long-lasting performance.
Depth of Discharge (DOD): 90% for higher usable capacity and system efficiency.
Recommended charge/discharge current: 50A with peak discharge up to 110A (15 seconds).
Wide temperature tolerance: Charge 0°C to 55°C / Discharge -20°C to 55°C.
High compatibility – works with popular inverter brands including Victron, Growatt, Solis, SMA, Luxpower, GoodWe, and more.
Expandable system – connect up to 50 units in parallel for higher capacity needs.
Compact & sleek for Dyness DL5.0C-5.12 kWh Battery: Dimensions 558 × 545 × 150 mm and 49.9 kg weight.
Supports RS485, CAN, RS232 communication protocols – easy integration with inverters and energy systems.
Optional Wi-Fi module for remote monitoring and system visibility.
Certified to international safety standards: UN38.3, CE-EMC, IEC62619, CEI-021, GOST-R.
Suitable for home, business, solar storage, and backup systems.
IP20 rated enclosure – safe for indoor installation.
Quiet, safe, and low-maintenance energy solution for off-grid and grid-tied systems.
Designed to deliver consistent performance and reliable backup power.
Add to your solar setup or upgrade your battery bank with ease.
10 Year Limited Product Warranty.
