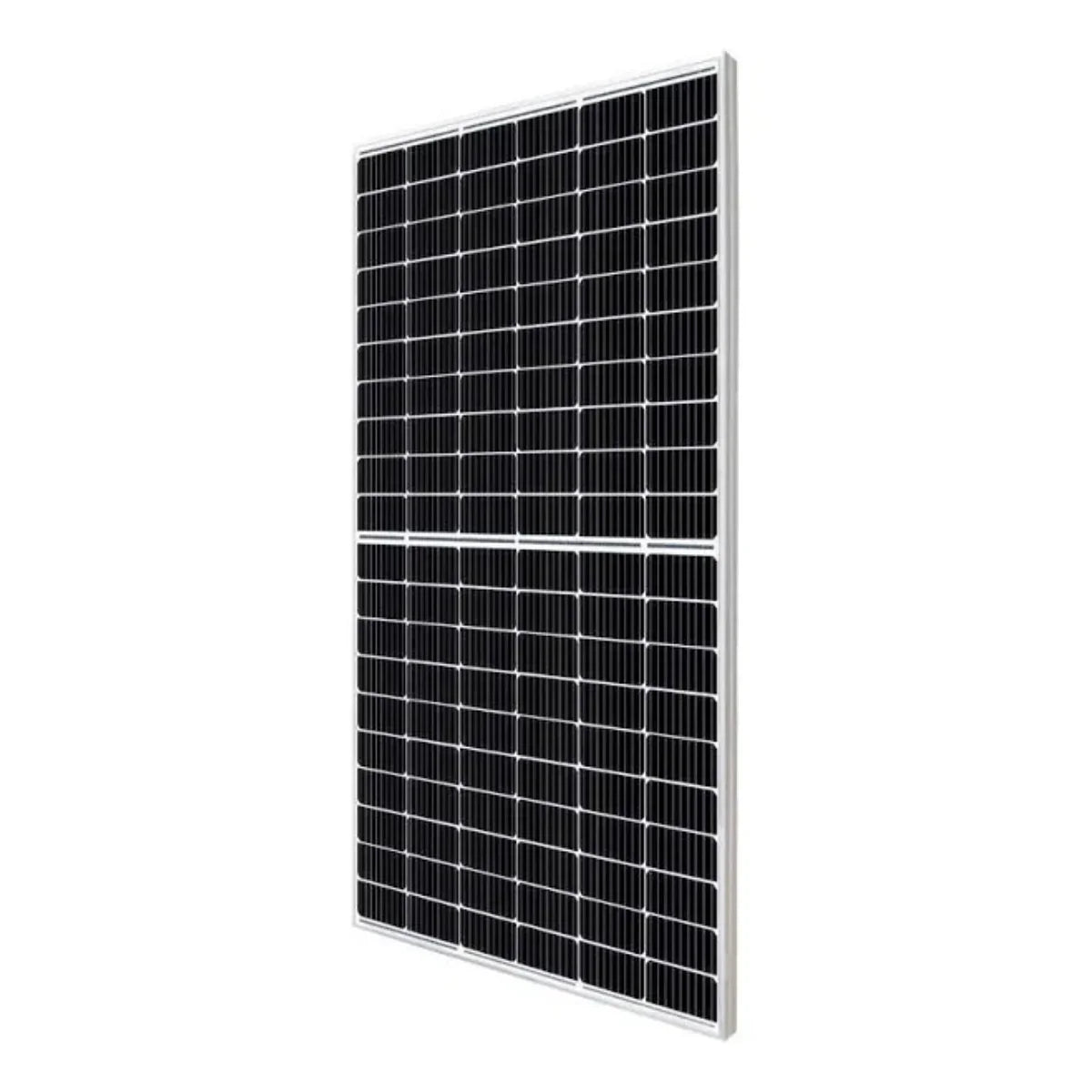

As an expert in the solar industry, I present the Canadian Solar 550W Mono PERC HiKU6 with MC4-EVO2. This high-performing solar panel utilizes mono PERC technology to achieve a 20% increase in energy generation. Plus, the MC4-EVO2 connection ensures a safe and durable installation. Power your home with Canadian Solar.
More Power
Module power up to 550W Module efficiency up to 21.5 %
Up to 4.5 % lower LCOE Up to 5.6 % lower system cost
Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
Compatible with mainstream trackers. Cost effective product for utility power plant
Better shading tolerance
MORE RELIABLE
Minimizes micro-crack impacts
Heavy snow load up to 5400 Pa, wind load up to 2400 Pa*
12 Years – Enhanced Product Warranty on Materials and Workmanship
25 Years – Linear Power Performance Warranty
Certifications
ISO 9001 : 2015 / Quality management system
ISO 14001 : 2015 / Standards for environmental management system
ISO 45001 : 2018 / International standards for occupational health & safety
IEC62941 : 2019 / Photovoltaic module manufacturing quality system
Product Certifications
IIEC 61215 / IEC 61730 / CE
UL 61730 / IEC 61701 / IEC 62716 / Take-e-way
Electrical Data at STC
CS6W: 550MS
Nominal Max. Power (Pmax): 550W
Opt. Operating Voltage (Vmp): 41.7 V
Opt. Operating Current (Imp): 13.20 A
Open Circuit Voltage (Voc): 49.6 V
Short Circuit Current (Isc): 14.00 A
Module Efficiency: 21.3%
Operating Temperature: -40°C ~ +85°C
Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
Max. Series Fuse Rating: 25 A
Application Classification: Class A
Power Tolerance: 0 ~ + 10 W
Electrical Data Under Nominal Module Operating Temperature
Nominal Max. Power (Pmax): 412 W
Opt. Operating Voltage (Vmp): 39.1 V
Opt. Operating Current (Imp): 10.55 A
Open Circuit Voltage (Voc):46.9 V
Short Circuit Current (Isc): 11.29 A
