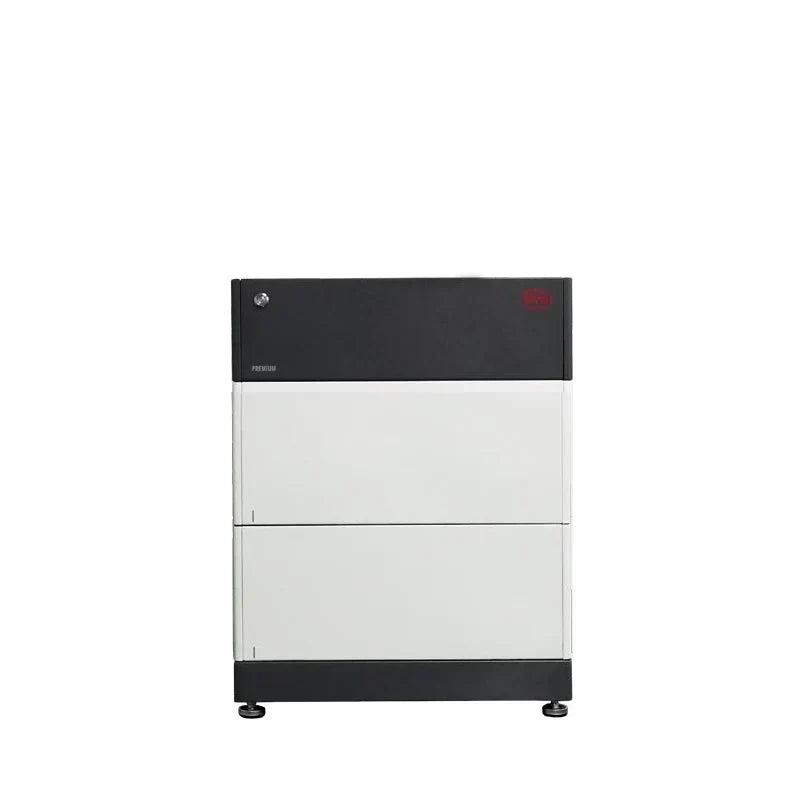

BYD HVS 5.1 5.12 204V kWh HV Lithium Battery

BYD HVS 5.1 5.12 204V kWh HV Lithium Battery

Regular price R 55,990.00

Wishlist Compare

Guarantee safe checkout

BYD HVS 5.1 5.12 204V kWh HV Lithium Battery

R 55,990.00

Description Material Reviews

Benifits

Capable of High-Powered Emergency-Backup and Off-Grid Functionality.
Highest Efficiency Thanks to a Real High-Voltage Series Connection.
The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use.
Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power.
Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters.
Two Distinct Modules to Cover the Complete Range of System Sizes.
Highest Safety Standards like VDE 2510-50.

Technical Parameters HVS 5.1

Battery Module HVS: (2.56 kWh, 102.4 V, 38 kg).
Number of Modules: 2.
Usable Energy: 5.12 kWh.
Max Output Current: 25 A.
Peak Output Current: 50 A.
Nominal Voltage: 204 V.
Operating Voltage: 160~230 V.
Dimensions (H/W/D) 712mm x 585mm x 298mm.
Weight: 91 kg.

General Information

Operating Temperature: -10 °C to +50°C.
Battery Cell Technology: Lithium Iron Phosphate (cobalt-free).
Communication: CAN/RS485.
Enclosure Protection Rating: IP55.
Round-trip Efficiency: ≥96%.
Certification: VDE2510-50 / IEC62619 / CEC / CE / UN38.3.
Applications: ON Grid / ON Grid + Backup / OFF Grid.
Warranty: 10 Years.
