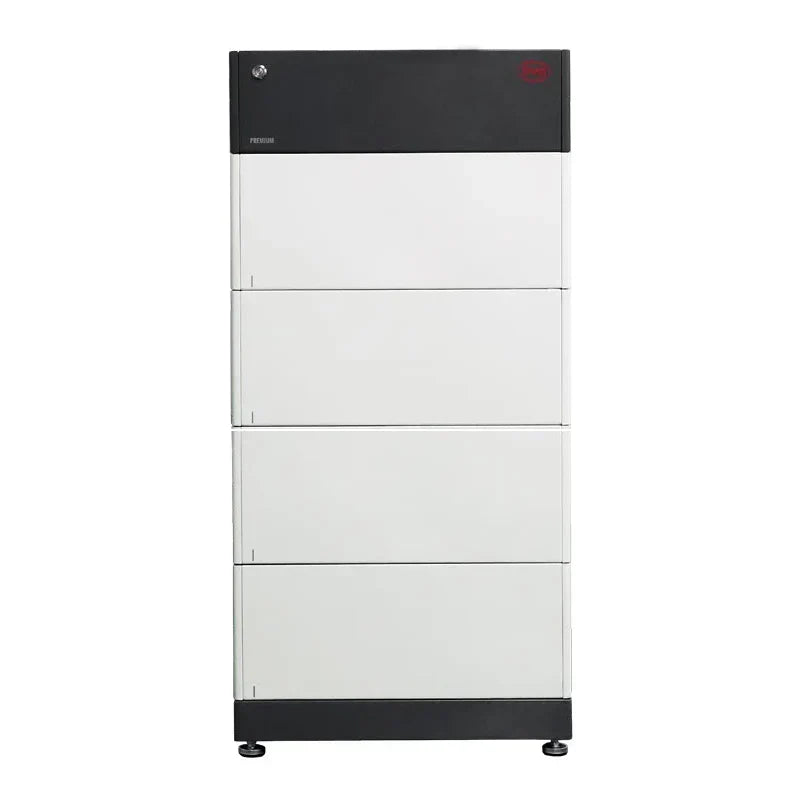

BYD HVS 10.2 10.24 kWh 409V HV Lithium Battery

BYD HVS 10.2 10.24 kWh 409V HV Lithium Battery

Regular price R 125,000.00

Wishlist Compare

Guarantee safe checkout

BYD HVS 10.2 10.24 kWh 409V HV Lithium Battery

R 125,000.00

Benifits

Capable of High-Powered Emergency-Backup and Off-Grid Functionality.
Highest Efficiency Thanks to a Real High-Voltage Series Connection.
The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use.
Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power.
Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters.
Two Distinct Modules to Cover the Complete Range of System Sizes.
Highest Safety Standards like VDE 2510-50.

Technical Parameters HVS 10.2

Battery Module HVS: (2.56 kWh, 102.4 V, 38 kg).
Number of Modules: 4.
Usable Energy: 10.24 kWh.
Max Output Current: 25 A.
Peak Output Current: 50 A.
Nominal Voltage: 409 V.
Operating Voltage: 320~460 V.
Dimensions (H/W/D) 1178mm x 585mm x 298mm.
Weight: 167 kg.

General Information

Operating Temperature: -10 °C to +50°C.
Battery Cell Technology: Lithium Iron Phosphate (cobalt-free).
Communication: CAN/RS485.
Enclosure Protection Rating: IP55.
Round-trip Efficiency: ≥96%.
Certification: VDE2510-50 / IEC62619 / CEC / CE / UN38.3.
Applications: ON Grid / ON Grid + Backup / OFF Grid.
Warranty: 10 Years.
