FEATURES
- 100% OFF GRID Solution
- NO Batteries or AC Required
- NO Timers required
- MPPT Controller

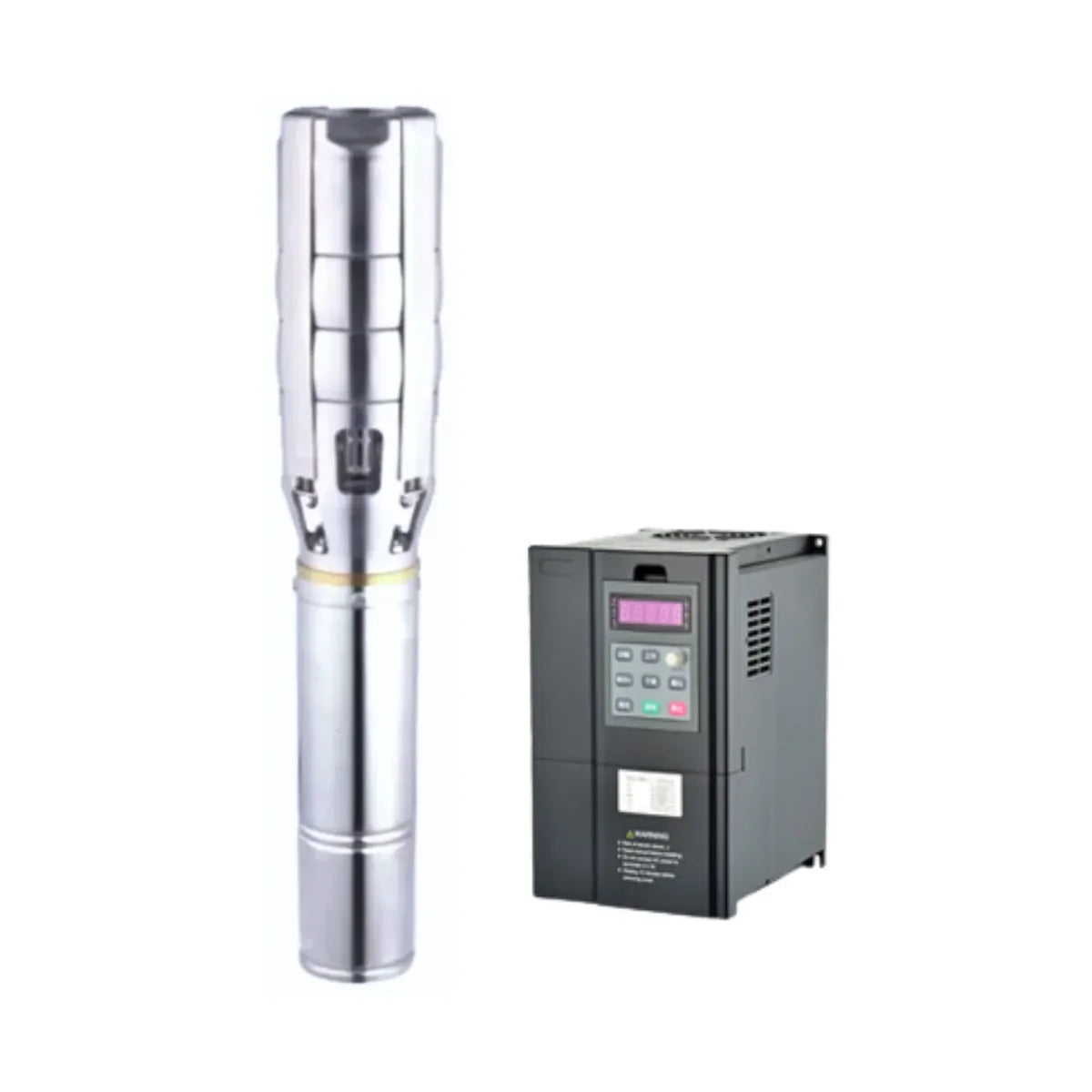

Model Specifications
| Model |
JCS6-70-60 |
| Voltage |
380 V |
| Power |
5500 Watts |
| Max Flow Rate |
70 m³/h |
| Max Head |
60 m |
| Warranty |
12 Months |
General Data
| Outlet |
4 inch (101.6 mm) |
| Pump Diameter |
150 mm |
| Type of Pump |
Centrifugal Pump |
| Submersible Depth |
80 m |
| Controller Input Voltage |
380V (VoC) |
| What's Included |
Pump, Controller, Float Level Switches, and 6m Cable |
Solar Panel Requirements
| PANELS |
VOLTAGE (VMP) |
QTY |
| 545 Watts |
49.4 V |
15 |
What is included:
- 1 x Bundu Power Cable Joint Kit
- 1 x Bundu Power 2 Way Pump Box
PLEASE NOTE: Submersible Cabler (4mm 3 Core) sold separately.
PLEASE NOTE: Exceeding the Input Voltage (380) to the controller can damage the controller and void your warranty. Please ensure the correct panel configuration before connecting the pump controller.
