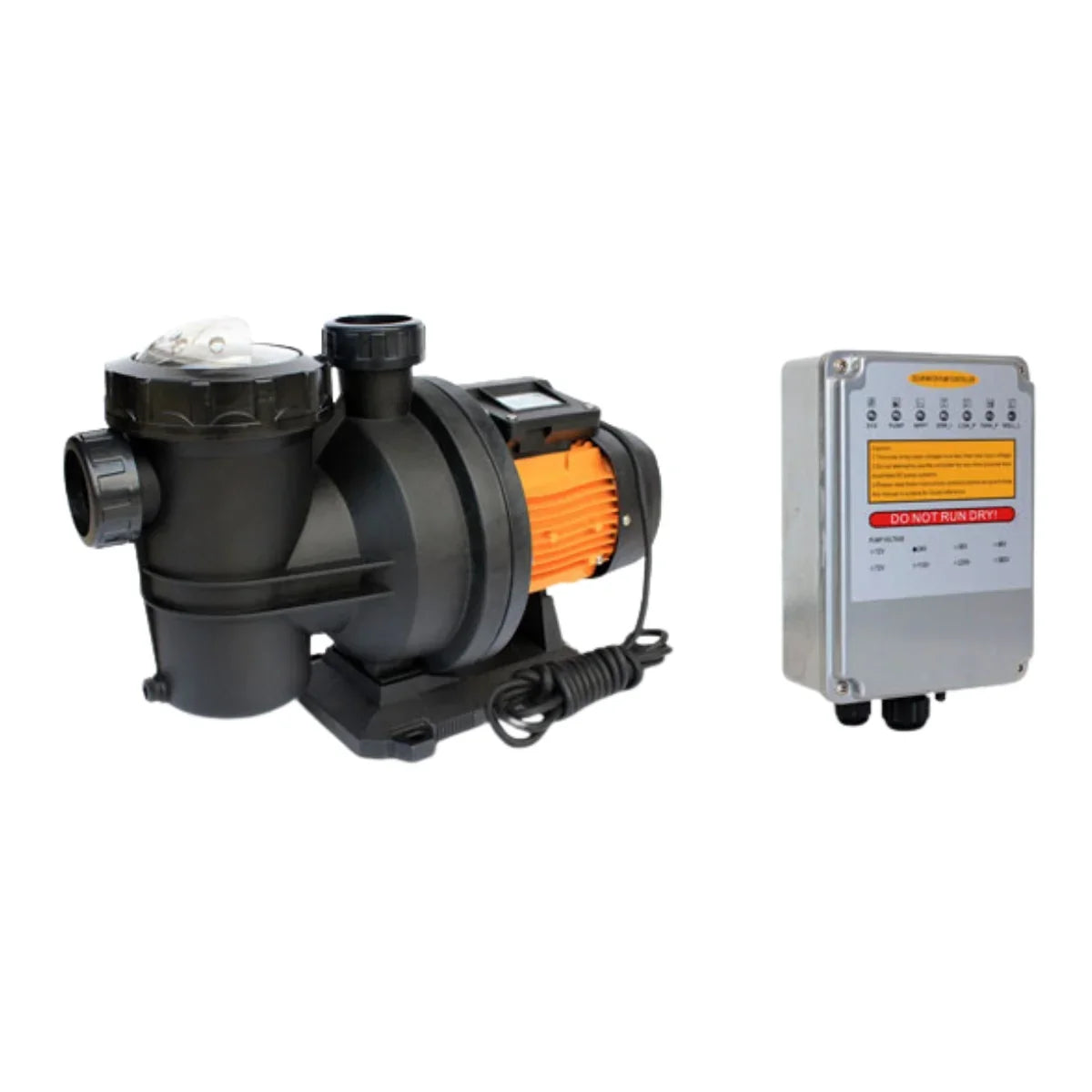

Bundu Power 250W 24V Solar Pond Pump

• 100% OFF GRID Solution
• NO Batteries or AC Required
• NO Timers required
• Variable Speed DC Motor
• MPPT Controller
• Pool water to be turned twice in 24 Hours
• 6.0m³ x 5.5Hrs p/day = (33m³/2) = 16,500 Ltrs
• 50mm Inlet / 50mm Outlet

SOLAR PANEL RECOMMENDATIONS

PACKED DIMENSIONS

What is included:

• 1 x Bundu Power 2 Way Pump Box

PLEASE NOTE: Submersible Cabler (6mm 3 Core) sold separately.

KEY ASSUMPTIONS

• Your pool water should be turned twice in a 24 hour period
• This pump will drive most pool cleaners
• Max pool size: (Flow Rate * 6Hrs per day) / 2 = Pool Size
• Higher head = less suction for pool cleaner
• Pump will start from sun-up to sun-down daily

How to determine Pool size

• Width (m) x Length (m) x Average Depth (m) x 1000 = Litres
• I.e.: 5m x 3m x 1.2m = 19.2m x 1000 = 19 200 Litres
• Pump size determined by rotating water twice in a 24 Hour period.
• Calculated on 6 hours at maximum pumping capacity per day.
• This pump is a replacement for your existing pool pump and it will work with your pool cleaner. It does not heat water.

PLEASE NOTE: Exceeding the recommended Input Voltage () to the controller can damage the controller and void your warranty. Please ensure the correct panel configuration before connecting the pump controller.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
