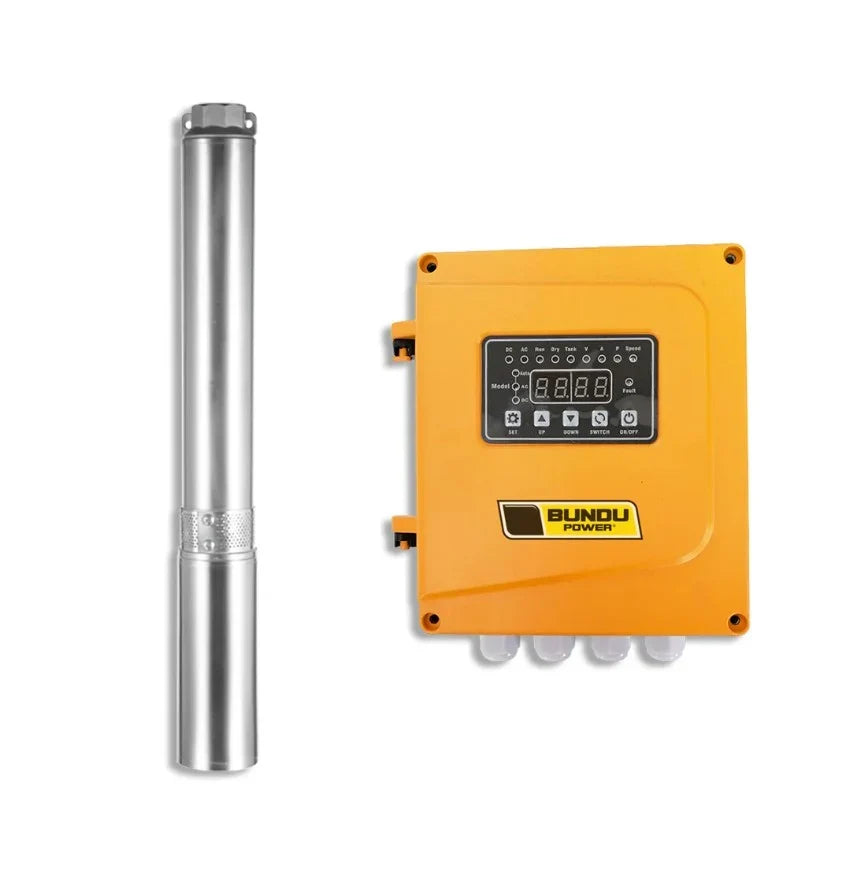

Bundu Power 144m 450v Hybrid Borehole Pump

Bundu Power 144m 450v Hybrid Borehole Pump

Regular price R 8,500.00

Wishlist Compare

Guarantee safe checkout

Bundu Power 144m 450v Hybrid Borehole Pump

R 8,500.00

Description

Features

Use Solar or AC Power
NO Batteries required
Auto Switch from AC to DC & back
Digital Display

Technical Specifications

Model	AD-3SPW1-17P
DC Voltage Range	60 - 450 V
AC Voltage Range	150 - 240 V
Pump Wattage	1500 Watts
Min. Power Requirement	2250 Watts
Max Flow Rate (m³/h)	4.1 m³/h
Max Flow Rate (L p/h)	4100 L/h
Max Head	144 m
Warranty	12 Months

General Data

Outlet	1.5 Inch
Pump Diameter	76mm (3")

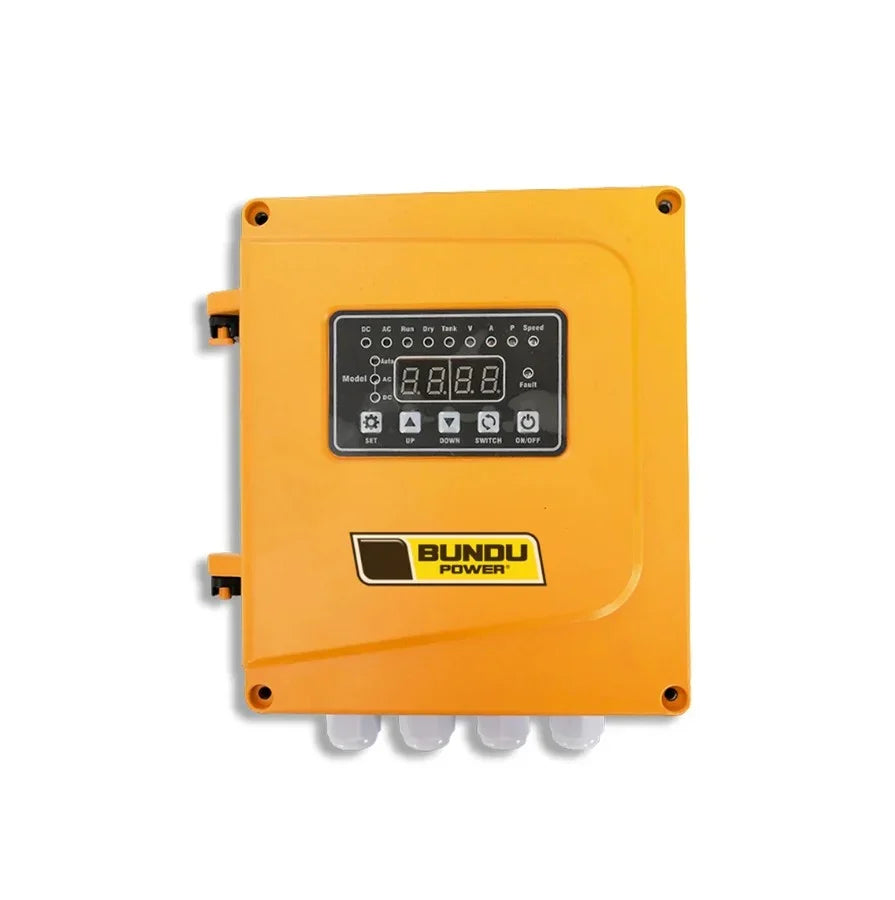

Type of Controller	Hybrid (AC & DC Input)
Submersible Depth (Pump)	150 m
Controller Input Voltage (DC)	60 - 450
Controller Input Voltage (AC)	150 - 240
Controller Type	External
Controller	Auto Restart on AC or DC on loss

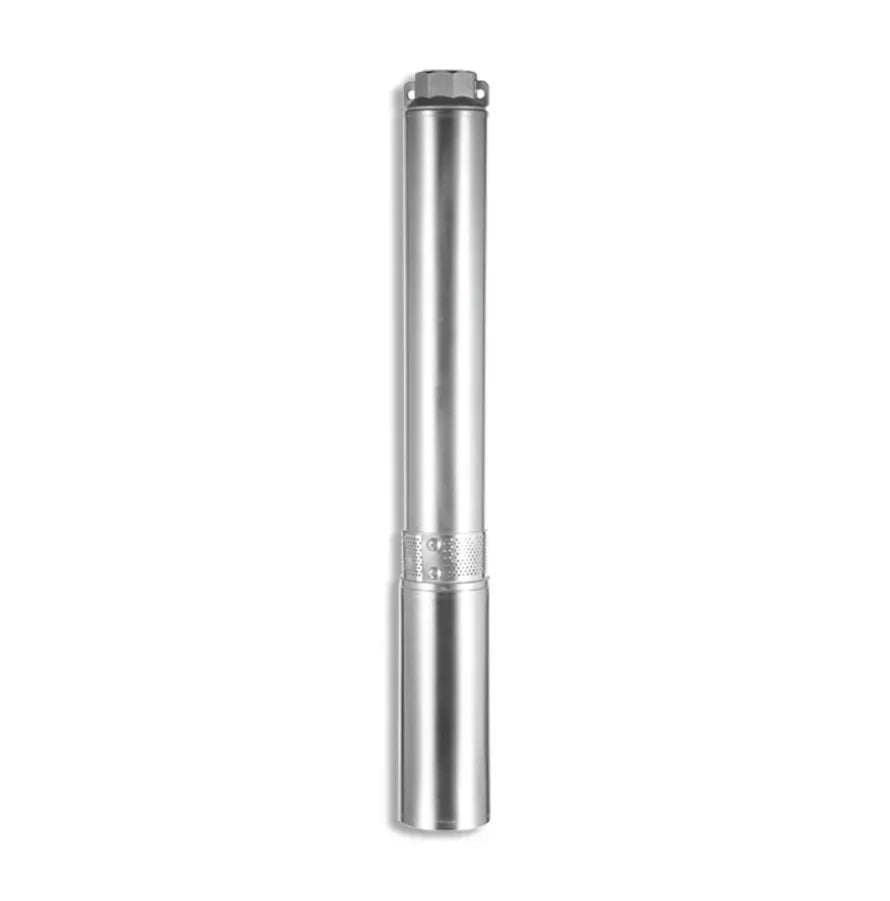

Pump Body	Stainless Steel (304)
Pump Motor	Water Filled
Pump Impeller	Plastic
Impeller Type	Centrifugal
Certification	CE, TUV SUD, UL, ISO9001, ISO14001
What's Included	Hybrid Pump, Hybrid Controller, User Manual

Packed Dimensions

Pump Length	940 mm
Pump Width	90 mm
Pump Height	90 mm
Pump Weight	8.5 kg
Controller Length	240 mm
Controller Width	230 mm
Controller Height	150 mm
Controller Weight	2.5 kg

Solar Panel Requirements

Solar Panels	4 x 550W (or Similar)

Key Points

Solar Panels oversized by 30%. i.e: A 500Watt pump should use 650Watts of Panels
Output based on 5.5 hours a day at max capacity. The pump will run longer, but slower in the mornings and evenings.
Submersible Depth = How far beneath the surface of the water. Not depth of the borehole.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
