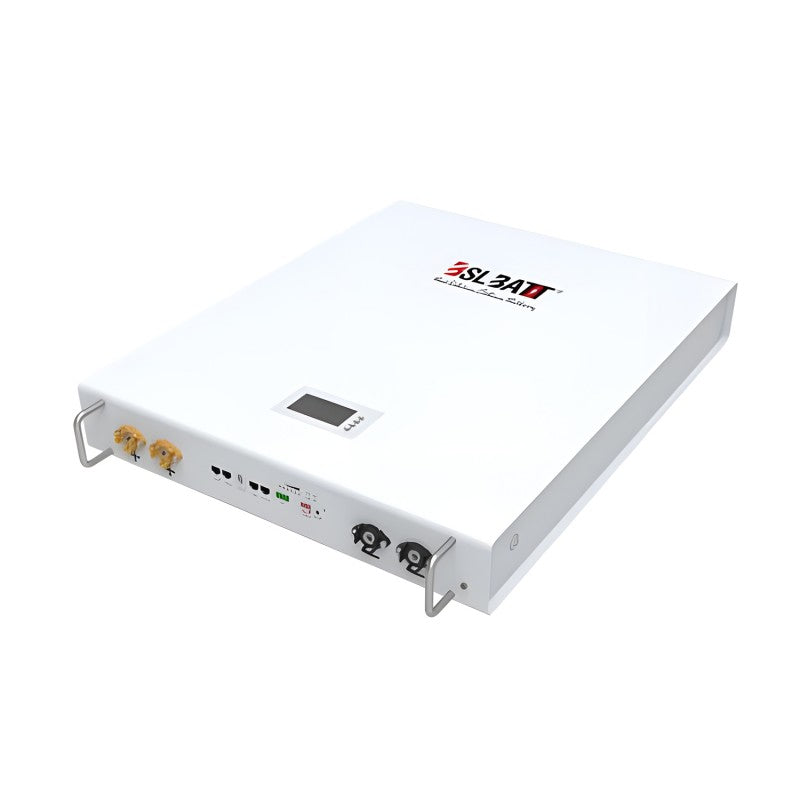

PowerLine is an ultra-thin wall-mounted battery that can be mounted directly to the wall with a simple snap-in installation.
The battery modules utilize FPC technology to ensure more consistent quality and are certified by UL1973 to deliver up to 98% efficiency.
In addition, this product can be cycled 6000 times at 100% DOD and still have 80% capacity. The battery can last up to 20 years for optimal performance and cost savings.
Features
– 3C peak value
– Up to 81.9 kWh in Low Voltage Connection
– Real-time monitoring system and remote debug
– Non-toxic and non-hazardous cobalt-free LFP chemistry
– Extended operating temperature -20°C to 60°C
– The thinnest Home ESS ever built with just 90mm thickness
– Certification: IEC62619, CE, UL1973, UN38.3
– The exceptional lifespan of up to 8000 cycles
– Cycle one to several times per day
– Extended warranty of up to 15 years
Application
– Back-up power
– Self-consumption optimization
– Off-grid power supply
Specifications
– Model: PowerLine 5
– Nominal Voltage: 51.2V
– Nominal Capacity: 100Ah
– Compound Mode: 1P16S
– Charging Voltage: 58.4V
– Charge Current: Continuous Charging: 50A, Maximum Charge: 100A
– Discharge Current: Continuous Discharging: 100A
– Factory Voltage: 50.4V – 53.6V
– Self-discharge Rate: ≤ 2.5% per month
– Mode of Equilibrium: Passive Equilibrium
– IP Level: IP22
– Temperature of Charge: 0°C to +65°C
– Temperature of Discharge: -20°C to +65°C
– Dimensions: 670mm x 540mm x 90mm ±1mm
– Weight: 50kg ±1kg
