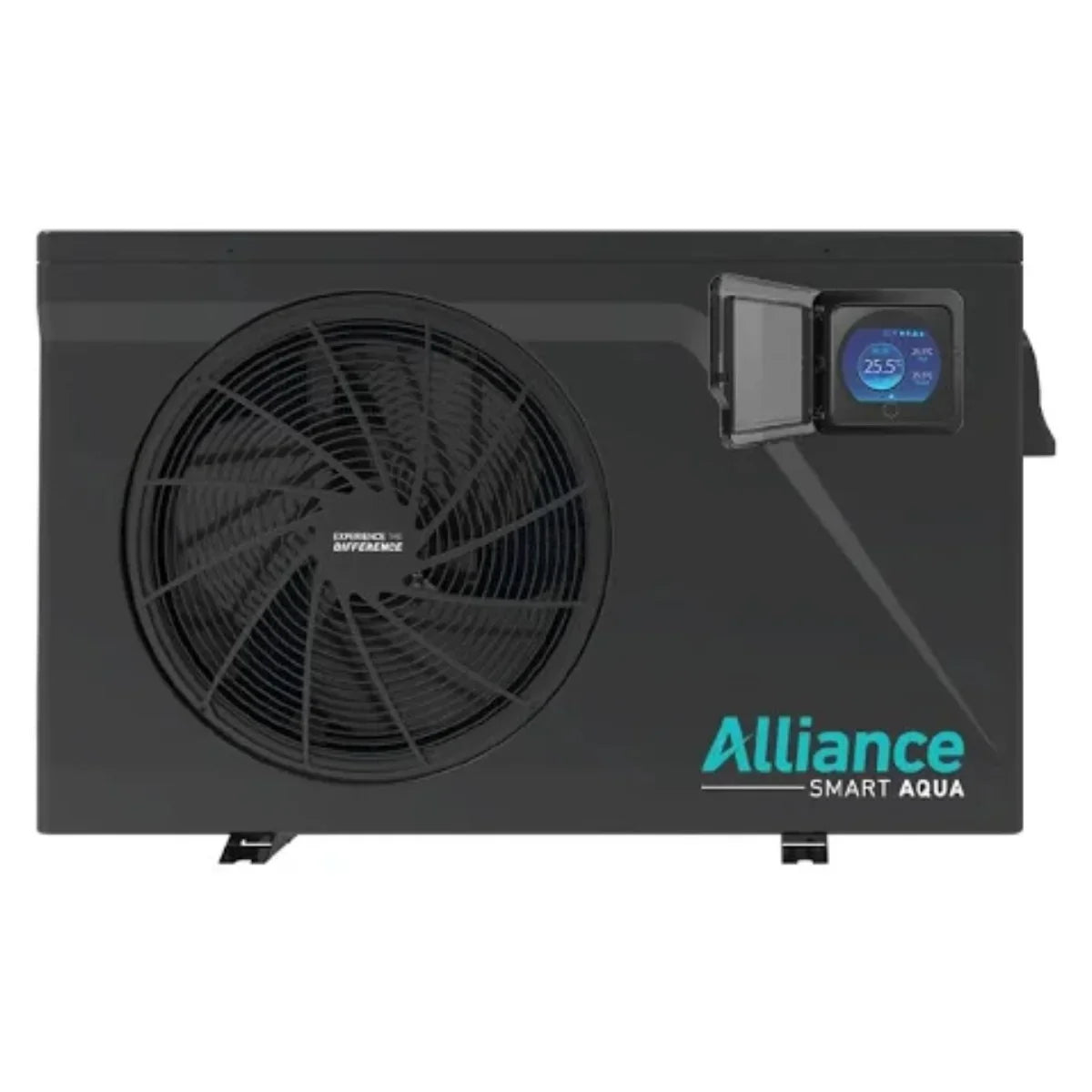

This state-of-the-art pool heat pump will keep your pool at the perfect temperature with its powerful 24kW inverter technology. It boasts energy efficiency while providing reliable and precise heating for your pool. Experience the benefits of a comfortably heated pool in any season with the Alliance Smart Aqua heat pump.
Product Description
- WiFi Enabled
- Energy Efficient
- Advanced Control - 3.5” Touch Display
- Eco Friendly R32 gas
- Style and Durability
- Easy Integration
Wifi Control
Take complete control of your pool’s temperature from anywhere in the world through Wi-Fi. The Wi-Fi control system provides you with real-time management of your pool or Jacuzzi heat pump, allowing you to customise the heating to your needs. You can easily monitor your heat pump’s energy consumption, set a personalised running schedule, and even troubleshoot issues through your web-connected devices, like your smartphone, tablet, or online account.
Smart Grid PV Ready Function
Utilise surplus PV energy with the SG Ready interface The Smart Aqua heat pump can connect to a Smart Grid Solar Inverter so that the heat pump can maximise free energy from solar PV panels. As a result, customers don’t need to use much grid power to operate the heat pump. The can reduce their pool heating costs, increase the efficiency of their PV systems and do their part to protect the climate by using more solar power in their homes.
Eco Friendly R32
R32 EcoFriendl R32 refrigerant offers a significantly lower Global Warming Potential (GWP) compared to R22, R134A, and R410A, improving heat exchange efficiency and promoting environmental benefits
Style and Durability
Manufactured using the latest colour-fast UV resistant technology, guaranteeing a stunning appearance for your backyard. The heat exchanger is made of PVC & Titanium tube which can withstand prolong exposure to swimming pool water.

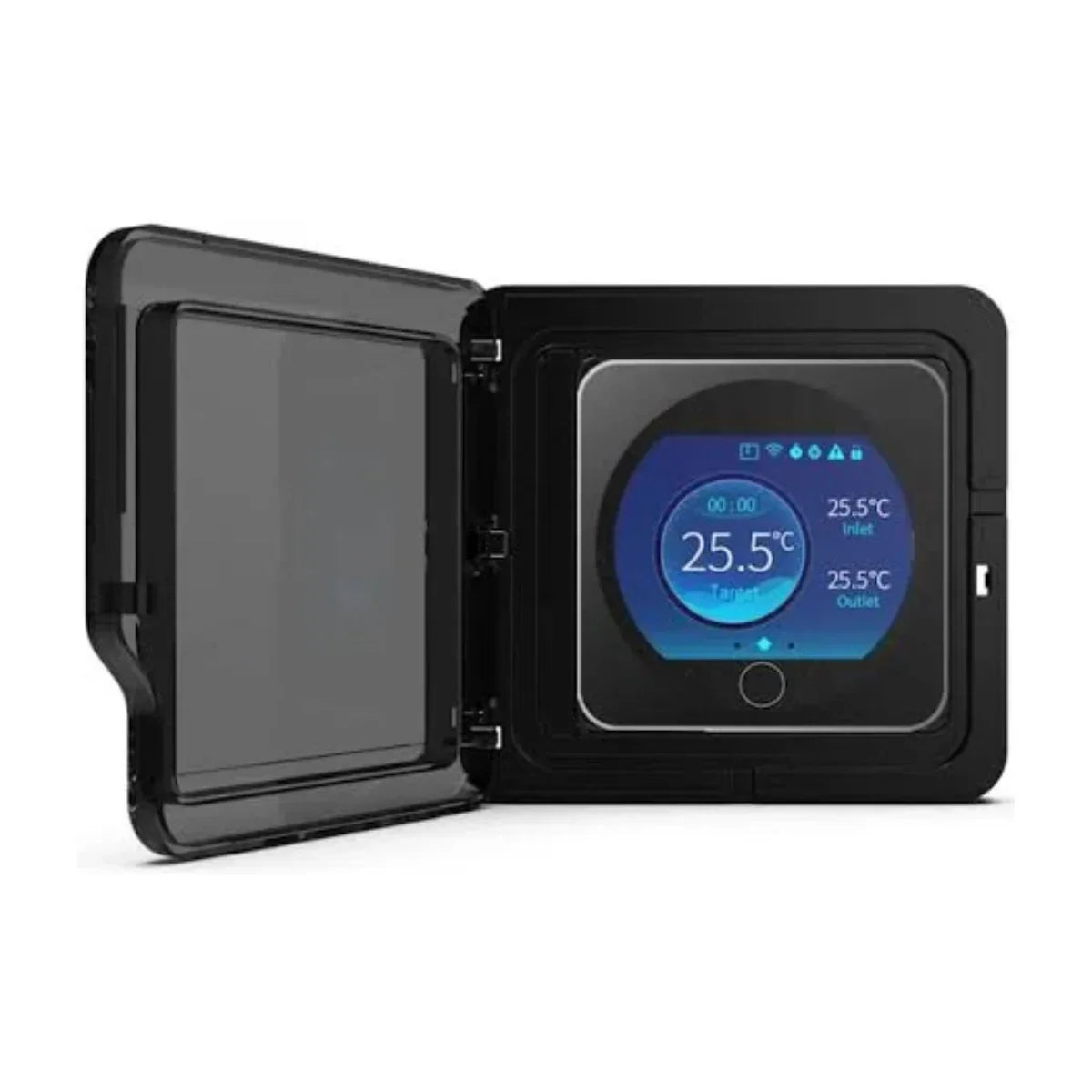

Advanced Controller
Our commitment to exceptional service sets us apart from our competitors that rely on contractors for after sales support. Providing in-house after sales support from our national team elevating the customer experience with convenience, reliability, and personalised attention. The unit includes micro-computer controlling, allowing all operation parameters to be set. Operation status can be displayed on the LCD wired controller. Large LCD touch screen controller to easily control your pool temperature and schedules.
Specifications:
| Unit |
ALLPH28R32–INV – Smart Aqua |
| Heating Capacity (kW) |
10.3 – 28 |
| Consumed Power (kW) |
0.82 – 4.89 |
| COP |
12.56 – 6.24 |
| Operating Air Temperature (°C) |
-7 to 43 |
| Power Supply |
380–415V / 3Ph |
| Max Power Input (kW) |
6.3 |
| Rated Current Input (A) |
10.22 |
| Compressor Quantity |
1 |
| Compressor Type |
Rotary |
| Refrigerant |
R32 |
| Fan Quantity |
1 |
| Fan Rotary Speed (RPM) |
400 – 800 |
| Fan Direction |
Horizontal |
| Noise [dB(A)] |
47 – 55 |
| Water Connection (mm) |
50 |
| Nominal Water Flow (m³/h) |
12 |
| Water Pressure Drop (max) (kPa) |
17 |
| Set Water Temperature Cooling / Heating (°C) |
9 / 40 |
| Unit Net Dimensions (L*W*H mm) |
1160*490*862 |
| Net Weight (kg) |
96 |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
