Description:

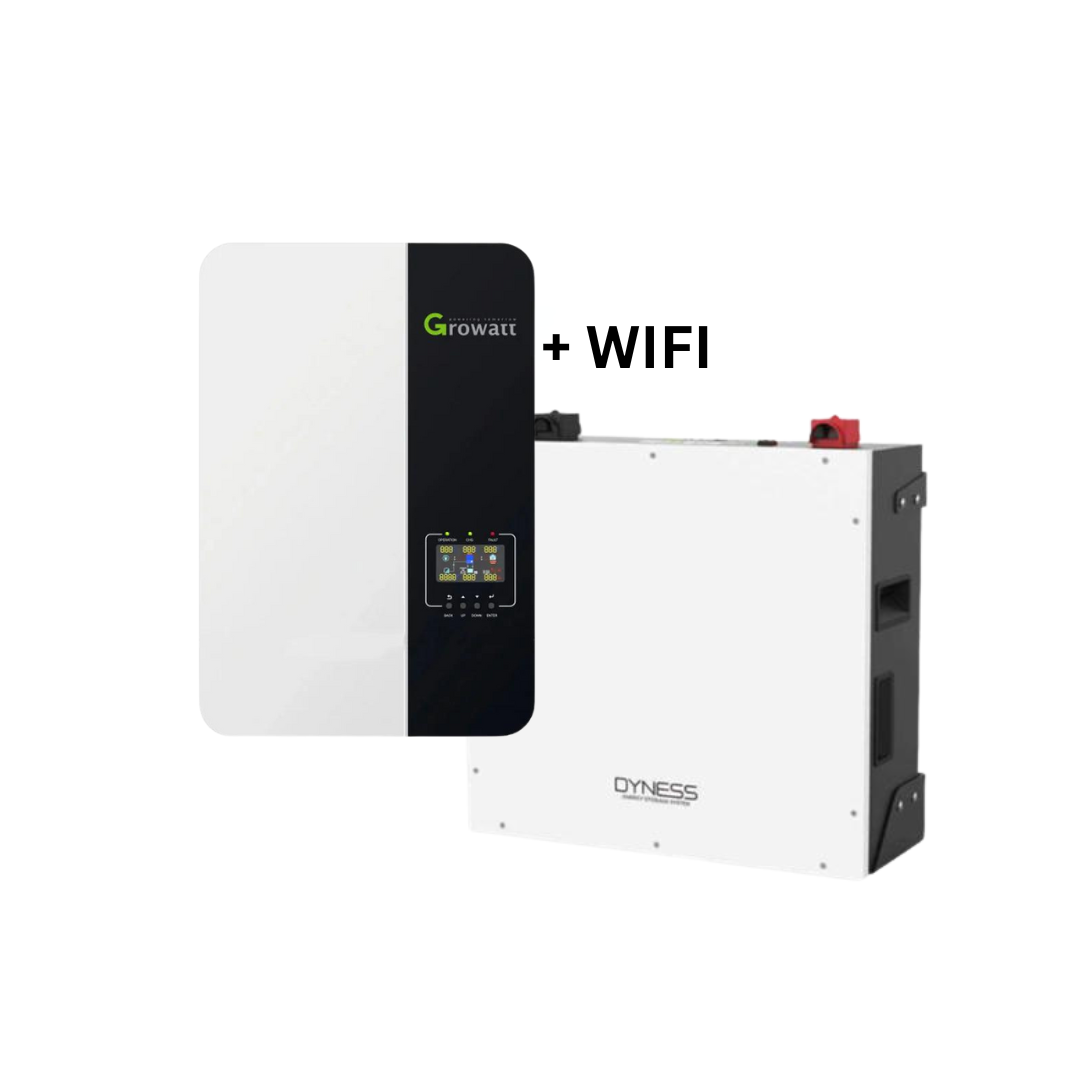

A-Grade 5kW Hybrid Inverter + 5.12kWh Lithium Battery System
The Growatt SPF 5000ES + Dyness DL5.0 100AH 1C 5.12kWh Lithium Battery Combo is a high-performance backup and solar energy storage solution designed for businesses, industrial sites, and off-grid applications. This powerful combination ensures seamless integration, efficient energy management, and long-lasting power reliability.
Key Features for Businesses & Industrial Users:
-
5kW Hybrid Inverter: Supports both off-grid and hybrid applications, maximizing energy efficiency.
-
Scalable System: Parallel up to 6 inverters for increased power output.
-
Flexible Energy Input: Solar (PV), grid, or battery – choose your priority mode.
-
Advanced MPPT Solar Charging: 6,000W max PV array power with dual MPPTs for optimal performance.
-
Smart Battery Management System (BMS): Integrated protection against overcharging, short circuits, and voltage fluctuations.
-
Remote Monitoring & Control: WiFi-enabled for real-time tracking via app.
-
Robust Build Quality: IP20-rated protection ensures durability in industrial settings.
Technical Specifications:
Inverter (Growatt SPF 5000ES)
-
Rated Power: 5000W
-
PV Input Voltage Range: 90V – 500VDC
-
MPPT Operating Range: 240V – 450VDC
-
Max PV Array Power: 6000W
-
Surge Power: 10,000VA
-
Efficiency: 97% conversion rate
-
Parallel Operation: Up to 6 units
Battery (Dyness DL5.0 5.12kWh Lithium Battery)
Reliable & Scalable Lithium Battery for Solar Storage
The Dyness DL5.0 5.12kWh Lithium Battery is a high-performance energy storage solution designed for home and commercial solar installations. Built with LiFePO4 (LFP) technology, it ensures enhanced safety, longevity, and efficiency. The battery supports parallel configurations of up to 40 modules, providing a scalable system for larger energy storage needs.
Key Features:
High-Capacity Energy Storage
-
5.12kWh battery module for efficient energy backup
-
51.2V DC system with a 100Ah capacity
- Supports continuous charge/discharge at 50A (75A max)
Advanced Lithium Iron Phosphate (LFP) Technology
- Superior thermal stability and extended battery lifespan
-
Safe and stable operation with built-in protection features
Smart Energy Management & Connectivity
- Supports CAN & RS485 communication for system monitoring
- Compatible with wall-mounted and rack-mounted installations
Scalable System for Large Power Demands
-
Up to 40 battery modules can be connected in parallel
- Flexible system design for residential and commercial setups
-
Battery (Dyness DL5.0 100AH 1C 5.12kWh Lithium Battery)
-
Capacity: 5.12kWh
-
Battery Voltage: 51.2V (100Ah)
-
Battery Type: Lithium-Ion (LiFePO4)
-
Cycle Life: 10+ years lifespan
-
BMS Protection: Overcharging, deep discharge, and short circuit protection
Installation & Compliance:
-
Compatible with industrial power setups requiring reliable backup solutions.
-
Professional installation required, adhering to SANS 10142 standards.
- 2-Year Warranty (Inverter)
- 10-Year Warranty (Battery)
